Particle sieve shaker MLUA

laboratory

Overview
The laboratory plansifter MLUA determines the particle-size distribution of intermediate and end products in grain milling and brewing applications. Fine-tune the quality of your end product.

Key benefits

• Variable speed and sifting time: adjustable between 1 and 15 minutes with three speed settings (160, 260 or 300 rpm).
• High-quality sifting: conforms to EBC and MEBAK brewery guidelines.
• Wide range of applications: modular design allows combinations of sieves and bottom frames; quick-change sieve clamps enable fast sieve replacement.

What is included / Designed for simple operation
The MLUA consists of a rugged housing with integrated drive, an operator panel, stainless steel sieve sets and a sieve tensioning device. All components are designed for easy use and cleaning and the unit is supplied in a modular construction.

Flexible configuration / Key features

• Supplied with standard sieve sets for milling and brewery laboratory applications.
• Any sieve size and tension can be supplied; sieve sets can be customized to customer requirements.
• Modular design: select combinations of sieves and bottom frames; fitted with quick-change sieve clamps.

Application possibilities

• Brewing
• Wheat (grain milling)
• Durum wheat

Specifications / Technical data

• Model: MLUA (laboratory plansifter)
• Sifting time: adjustable between 1 and 15 minutes
• Speed settings: 160 rpm, 260 rpm, 300 rpm
• Sieve material: stainless steel sieve sets
• Design: rugged housing with integrated drive; modular construction

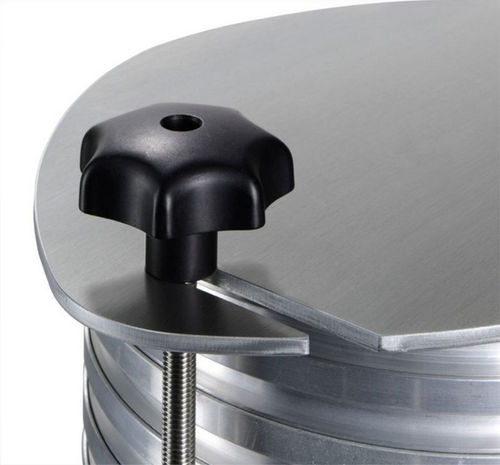

• Sieve handling: sieve tensioning device and quick-change sieve clamps
• Standards: conforms to EBC and MEBAK brewery guidelines
• Applications: milling and brewery laboratory analyses; customizable sieve sizes and tensions
