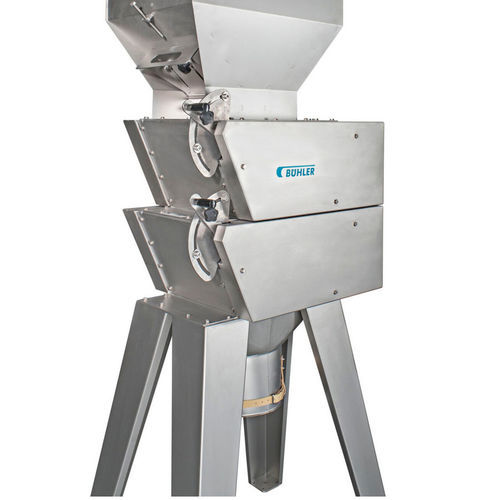

Malt mill Smartgrist

grainrollerstainless steel

Overview
The Smartgrist grist mill grinds malt and barley into husks, grist and flour in two passages using four rollers. Its compact stainless-steel footprint makes it suitable for small industrial and show breweries with brew sizes from 20 hl up to 40 hl.

Key benefits

• Compact design suitable for many breweries: Small footprint and elegant stainless-steel construction allow installation in both small industrial and demonstration brewery environments.
• Configure to your needs: Optional extra hopper increases hopper volume to 80 or 150 liters; optional sampler enables quick product checks.
• Gentle grinding: Specially tempered titanium rollers provide controlled, gentle milling of malt and barley.

Product features

• Simple integration into your plant: Compact stainless-steel design with pressure shock resistance up to 0.5 bar.
• High operational safety: Optional permanent magnet in the feed gate prevents metal ingress; spring-loaded roller assembly allows the gap to open so stones can pass without damaging the mill.
• Suitable for direct mashing / high output: Designed for direct mashing without grist containers up to 20 hl and for indirect mashing up to 40 hl per brew.

Services and training
Bühler services and training programs support product knowledge, operation and maintenance to help operators integrate the Smartgrist effectively into their process.

Technical specifications

• Four rollers in two passages for grinding malt and barley into husks, grist and flour.
• Recommended brew sizes: direct mashing up to 20 hl; indirect mashing up to 40 hl per brew.
• Compact stainless-steel construction; small footprint suitable for show and small industrial breweries.
• Optional extra hopper to increase capacity to 80 or 150 liters.
• Optional sampler for rapid product inspection.
• Specially tempered titanium rollers for gentle, controlled milling.
• Pressure shock resistance up to 0.5 bar.
• Optional permanent magnet in feed gate to prevent metal ingress.
• Spring-loaded roller assembly to allow stones to pass without damage.
