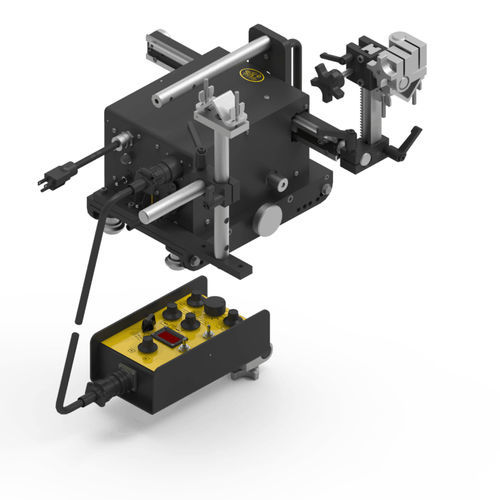

The Universal Bug-O-Matic is a rail-mounted track welder that integrates a drive unit and a precision welding oscillator in a compact housing. It is designed for single-operator handling and operates in all welding positions, including vertical and overhead. Interchangeable carriages allow use on rigid, semi-flex, hi-flex or complete ring rails; the carriage opening mechanism permits installation or removal at any point on the rail.

Welding & motion control
The unit provides adjustable travel speed, amplitude, oscillation speed, dwell left and dwell right. During welding, the torch can be steered via a dedicated knob. Closed-loop feedback and dynamic braking ensure precise starts/stops and a constant travel speed under load.

Auto Height Control (AHC)
The optional Auto Height Control uses amperage sensing to maintain a constant torch-to-work distance by motorized adjustment of the torch position. AHC offers 51 mm (2") of vertical travel, time delay after arc strike, and automatic shutdown if current falls below a set threshold. Manual jog override is available; AHC resumes when released.

Pendant control
A remote control pendant enables operation from up to 3 m away and clamps to the machine handle for storage. A Control Orientation Reversing switch is standard to match pendant controls to machine orientation when running multiple units on a ring.

Proven field performance
When combined with mechanized FCAW and precision oscillation, the system reduces required passes and overall execution time compared with manual welding. Field results report up to 57%–75% faster completion while maintaining consistent bead profile and weld quality.

Key benefits

• Time savings: Reduces total execution time by 57%–75% through mechanization and reduced interruptions.
• Fewer passes: Decreases fill and cap passes by 40%–55% while preserving bead consistency.
• Material efficiency: Improves wire efficiency and reduces consumable waste versus coated electrodes.

Rail options

• Aluminum Rigid Rail: Straight-line applications. ARR-1080 (2.37 m / 93-1/2"), ARR-1085 (1.18 m / 46-1/2"). Extra Heavy Duty variants: ARR-1250 (2.37 m) and ARR-1200 (1.18 m).
• Bent Rigid Rail: High-alloy bent sections for circumferential applications; available as complete rings (BRR-1210-__) or individual sections (BRR-1180).
• Semi-Flex Rail: Bendable to a minimum radius of 5 m (15') without permanent deformation (AFR-3000).
• Hi-Flex Rail: Flexes to a 760 mm (30") radius inside or outside. FMD-2155 (8 permanent magnets) and FMD-2170 (8 Rare Earth On/Off magnets).

Carriage options

• Releasable 12" Carriage (MPD-1065): 45 kg carrying capacity; side knob engages/disengages wheels for placement anywhere on rail. Use with Aluminum Rigid or Semi-Flex Rails.
• 18" Carriage (MPD-1055): Extended deck for accessories or wire feeder; 67.5 kg capacity. Use with Aluminum Rigid Rail.
• Tube Carriage (BUG-5960): Split body for quick placement; six wheel positions for circumferential work over wide diameters; 45 kg capacity. Use with Rigid, Semi-Flex or Bent Rigid Rails.
• Hi-Flex Carriage (FMD-1100): Placeable along Hi-Flex track with quick-release knob for relocation. Use with Hi-Flex Rails.

Accessories and retrofit options
AHC retrofit kits are available (e.g., BUG-6553) to add Auto Height Control to BUG-5700 through BUG-5704 units. AHC controls are self-contained and independent of the drive unit, with Auto/Manual selection and manual override.

Caractéristiques / Spécifications techniques

• Product name: Universal Bug-O-Matic
• Manufacturer / Brand: Bug-O Systems
• Applicable models / part numbers: BUG-5700, BUG-5702, BUG-5704 (Universal Bug-O-Matic); BUG-6550, BUG-6552, BUG-6554 (with Auto Height Control)
• AHC retrofit: BUG-6553 (CAS HALL Effect for BUG-5700 to BUG-5704)
• AHC vertical travel: 51 mm (2") motorized slide
• Pendant remote reach: up to 3 m (10 ft)
• Carriage capacities: MPD-1065 = 45 kg; MPD-1055 = 67.5 kg
• Supported rail types: Aluminum Rigid, Extra Heavy Duty Rigid, Bent Rigid, Semi-Flex (min radius 5 m), Hi-Flex (min radius 760 mm)
• Hi-Flex variants: FMD-2155 (8 permanent magnets), FMD-2170 (8 Rare Earth On/Off magnets)
• Controls: travel speed, amplitude, oscillation speed, dwell left/right, torch steering knob, Control Orientation Reversing switch, closed-loop feedback, dynamic braking
• Typical application: mechanized FCAW pipe welding (vertical, overhead, circumferential)
• Proven improvement: up to 57%–75% reduction in execution time vs manual; 40%–55% reduction in fill and cap passes
