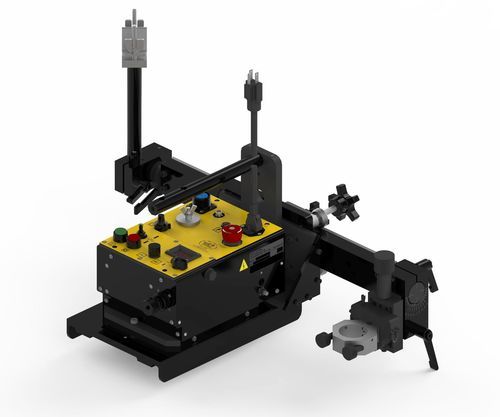

Electric plasma beveler DC-IV MAX

portablemobilefor weld seam preparation

Overview:
For metal workers who need to easily and repeatably bevel or vertically cut metal off the CNC table, the DC-IV MAX is a turnkey solution that pairs a purpose-built tractor and controller from Bug-O Systems with Hypertherm Powermax series or MAXPRO plasma cutting systems.

Features:

• ONETOUCH® – One button start for both tractor and plasma system.
• Integrated start delay to allow arc transfer before tractor motion.
• PSC® (Process Stop Control) – When the cut is done, the entire process stops automatically.
• Integrated with Hypertherm Powermax series and MAXPRO power sources.
• Vertical and bevel cut charts provided for Powermax and MAXPRO.
• Torch alignment guide for bevel cutting setup.
• Heavy duty racking provides smooth and stable operation.
• Independent manual bevel and lead/lag angle controls.
• Built-in degree dial on bevel and lead/lag angle.
• Torch breakaway with auto process stop.
• Auto shutdown at end of plate.
• Pierce timer settable directly in seconds.
• Oxy fuel accessory available for cutting >2" (50.8 mm).
• Display shows tractor speed in inches/min or cm/min.
• Emergency stop.
• Tool-less setup.
• Fine speed adjustment.
• MAXPRO200 bundle features hardened electronics with enhanced grounding to accommodate high frequency starting.
• Made in USA.

Benefits:
As with all Bug-O equipment, expect increased productivity through tool-less setup that reduces machine downtime, increases operator efficiency, and simplifies setup.

Reduce Material Handling – Lightweight, compact footprint allows the machine to be brought to the workpiece in the shop or in the field.

Improve Quality – Precision speed control and a rigid aluminum track-based system provide smooth torch motion at optimal travel speeds for high-quality plasma cuts. With travel speeds of 0–100 inches per minute (0–254 cm/min), the DC-IV MAX supports plasma cutting and gouging with Powermax and MAXPRO systems.

Reduce Distortion and Cut Edge Prep – Higher torch travel speeds versus oxy fuel cutting reduce the risk of distortion and lower rework, grinding, and cleanup when using the supplied cut charts for optimal setup and operation.

Caractéristiques / spécifications techniques:

• Product: DC-IV MAX (turnkey off-table beveling and cutting system).
• Integration: Compatible with Hypertherm Powermax series and MAXPRO power sources.
• Control: ONETOUCH® one-button start; PSC® process stop control; integrated start delay; pierce timer (seconds).
• Motion & Speed: Travel speed range 0–100 in/min (0–254 cm/min); display supports in/min or cm/min; fine speed adjustment.
• Beveling: Independent manual bevel and lead/lag controls; built-in degree dial; torch alignment guide for bevel setup; torch breakaway with auto process stop.
• Safety & Shutdown: Emergency stop; auto shutdown at end of plate.
• Accessories: Oxy fuel accessory available for cutting >2" (50.8 mm).
• Construction: Heavy duty racking for smooth, stable operation; tool-less setup for reduced downtime.
• Electronics: MAXPRO200 bundle includes hardened electronics and enhanced grounding for reliable high-frequency starting.
• Documentation: Vertical and bevel cut charts provided for Powermax and MAXPRO.
• Origin: Made in USA.
