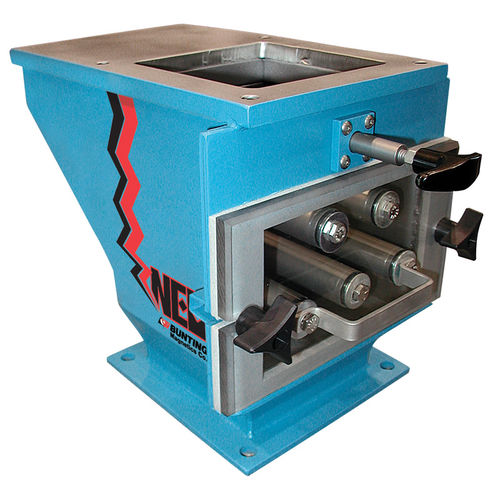

Particle separator FF series

magnetic grategravityfor in-line monitoring

FF Series Drawer Magnets for Superior Contaminant Capture in Gravity Free-Fall Applications Remove medium to fine tramp metal contaminants from your gravity free-fall granular plastics with the plastic industry’s most popular – and most complete line of – drawer magnets. Staggered rows of temperature-compensated, high-intensity neodymium magnets instantly stop metal, purifying your product before it enters your expensive extrusion, injection or blow molding equipment with less chance of wipe-off. Yet, most powdered colorants and resins slide off without sticking. Product Features: • Temperature-compensated, high intensity rare earth magnets for superior high temperature operation and exceptional surface-holding force • Two rows 1” diameter tubes maximize magnetic circuit while allowing ample space for flow • Rugged, 11-gauge stainless steel housing built to support symmetrical compression loads of 10,000 pounds • Dust-tight welded housing for easy cleaning and durability • Drawer gasket cut from ethylene propylene diene (EPDM) to resist heat aging and compression set, and offers much greater durability than sponge rubber • Clear polycarbonate drawer front for easy viewing of product flow and captured contaminants • High-torque nylon knobs resist breakage • Superior cartridge geometry increases reach-out and holding power • Available in 4”, 6”, 8” and 10” square
