Temperature monitoring system EO25

speedflowalarm

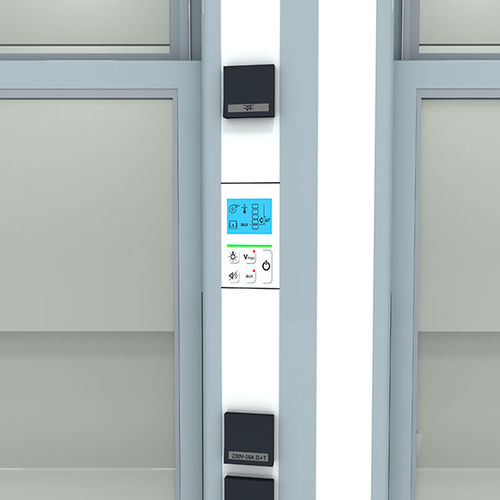

Fume cupboards are equipped as standard with a monitoring system in accordance with the specifications of EN14175-part 2. The monitor tells the user whether or not the airflow or speed is adequate and if there is an alarm. If there is an alarm, both a visual and an audible indicator will be activated. Alarms: The monitor is equipped with different alarms that alert the user to different conditions such as: insufficient flow alarm, insufficient on-screen speed, faulty extraction motor, maximum temperature exceeded alarm, etc. The EO25 electronic system located on the right-hand side of the fume cupboard and based on a micro-controller operating at 5V provides complete, easy, and safe touch control of the electrical services in the cupboard. Communications: The EO25 is equipped with a 2-wire MODBUS-RTU digital communication module that makes it possible to create a network of up to 240 devices. Every fume cupboard has 42 accessible records that make it possible to view the operating parameters. This facilitates communication with BMS and IoT systems.
