5-axis bridge saw CSA 567/569

for stonewith tilting blade

Overview

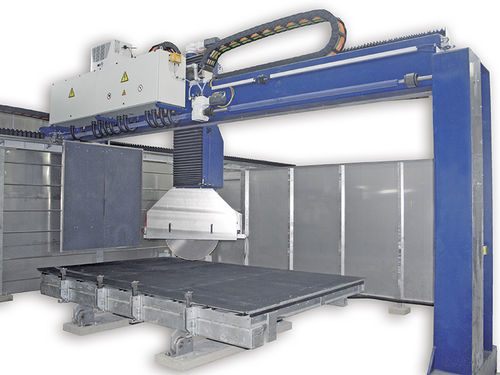

The CSA 567/569 is a 5-axis rotary-head saw for stone processing, designed for heavy solid workpieces and large-format cutting. It accepts saw blades up to 1600 mm and uses a gearbox-reduced saw motor to provide full motor power (30–55 kW) at low blade speeds. Optional vacuum handling and automated multi-table or pallet loading enable continuous multi-shift production.

Key features

• 5-axis rotary-head configuration for precise miter and profile cuts on thick workpieces.
• Blade diameter up to 1600 mm for large-format cutting.
• Gearbox reduces motor speed so full motor power is available at low cutting speeds (30–55 kW).
• Optional vacuum suction device for automated handling, max load 1500 kg.
• Swivel device for accurate miter cuts and horizontal blade profile cuts.

Technical specifications

• Maximum cutting depth: 640 mm
• Maximum saw blade diameter: 1600 mm
• Saw motor: 30–55 kW
• Blade carriage travel (X): up to 4800 mm
• Vertical travel (Z): up to 1200 mm
• Feed rates: X, Y 20 m/min; Z 6 m/min

Automation and handling

• Infeed table feed rate: 20 m/min
• Optional automated loading/unloading with multiple work areas or pallet systems for uninterrupted multi-shift operation
• Optional vacuum handling system with max load capacity 1500 kg

Applications

• Large-format and heavy stone cutting
• Solid stone blocks and slabs
• Precise miter and profile cuts for architectural stone components
