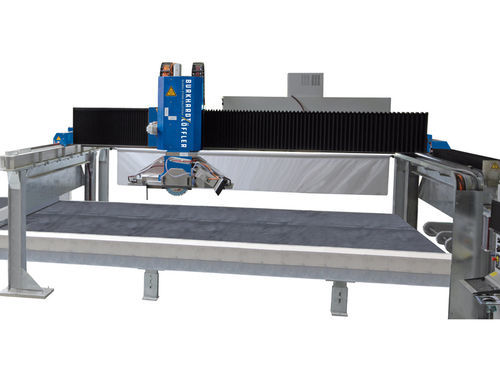

Stone bridge saw CSA 598

with fixed bridgewith waterjet cutting

Overview

The CSA 598 is a bridge saw engineered for industrial stone processing, designed for precision, high automation and straightforward integration into production lines. Its modular concept allows integration of loading/unloading systems, manipulators and optional 2D/3D waterjet heads to increase versatility and throughput.

Key points

• Designed for industrial production with options for full automation (autoloader, saw band table, manipulator for automatic removal of sawn workpieces).
• Modular concept enables combination of a saw bridge with a 2D or 3D waterjet head—suitable for kitchen worktop and slab processing.
• High feed rate and flexible configuration for demanding cutting tasks.

Options

• 2D/3D waterjet cutting head
• Drilling unit
• Underfloor sawing and drilling
• Automatic loading and unloading of workpieces
• Stationary saw table or continuous belt table
• Digital slab imaging and software for slab yield optimization

Product preview

• Embedded product video and additional demonstration videos are available on the product page.

Technical specifications

• Cutting depth max.: 280 mm
• Saw blade diameter: 350–800 mm
• Saw motor: 15–24 kW
• Speed range: 500–10,000 rpm
• Blade carriage travel: 4,800 mm
• Vertical travel (saw height): 400–800 mm
• Feed rate: 40 m/min
