Screw vacuum pump COBRA NX 0950
drysingle-stageOEM

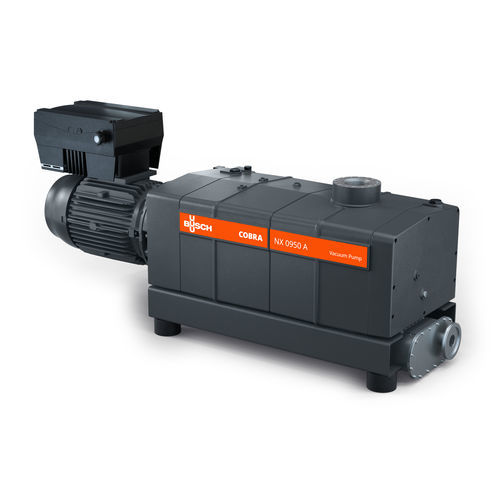

Screw vacuum pump - COBRA NX 0950 - Busch Vacuum Solutions - dry / single-stage / OEM
Screw vacuum pump - COBRA NX 0950 - Busch Vacuum Solutions - dry / single-stage / OEM
Screw vacuum pump - COBRA NX 0950 - Busch Vacuum Solutions - dry / single-stage / OEM - image - 2
Add to favorites
Compare this product

Characteristics

Technology
screw
Lubrication
dry
Number of stages
single-stage
Applications
OEM, for the chemical industry, for water, for exhaust gas, chemical process, for heavy-duty applications, for food, for pharmaceutical applications, for packaging, for industrial applications, for distillation
Other characteristics
ATEX, water-cooled, variable-speed
Ultimate vacuum

0.01 Torr
(0 psi)

Flow rate

950 m³/h
(33,548.93 ft³/h)

Power

18.5 kW
(25.15 hp)

Length

1,672 mm
(66 in)

Width

526 mm
(20.71 in)

Height

776 mm
(30.55 in)

Noise level

75 dB

Weight

900 kg
(1,984.16 lb)

Description

COBRA NX ECOTORQUE Efficient High energy savings thanks to the variable speed drive (ECOTORQUE), Ecomode with automatic start and stop function, reduced maintenance costs, long service intervals, extended pump lifetime, efficient cooling systems Flexible Precise adjustment of vacuum level (pressure control) and pumping speed (speed control) to process requirements, compatible with a wide range of supply voltages, easy control and monitoring of up to eight vacuum pumps with optional ECOTORQUE Master Control High performance Advanced screw design, patented self-balancing screws, excellent running qualities, perfectly suited for vacuum drying, freeze drying, degassing, heat treatment, thermoforming and many more Markets & applications Automotive and Transport Space Research Battery Degassing Mixing Impregnating Vacuum drying Electrolyte filling Carbon Capture Direct Air Capture R&D Central Vacuum Space Research Plasma Physics Thin Film Coating Decorative Coating Optical Coating Glass Coating Wear Protection Coating Accessories Sealing gas supply for seals used with applications particularly subject to damp or dust Gas-ballast valve for increased water vapor tolerance Exhaust gas silencer for reduced sound level Air-cooled version available
