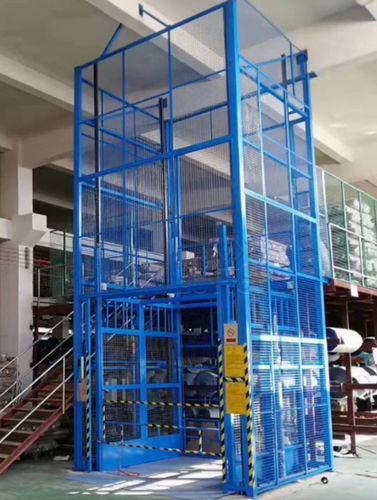

Electric goods lift EL1500

hydraulicindustrialfor warehouse

Electric Hydraulic Goods Lift 1000kg 2000kg Warehouse Cargo Elevator Product Description: - Equipped with single side or double sides hydro cylinder to ensure smooth and steady operation with noiseless performance, offering convenience and long working life. - Safe manual operation in case of blackout, with an emergency stop feature for protection during urgent situations. - The pit should be 15-30cm, with no height limit for the top. - Customizable according to multistoried building requirements. - Optional imported and domestic pump. - Hydro-cylinder and sealing elements use imported parts. - Optional imported controlling system. Features: - Hydraulic elevators include all safety devices of traditional elevators, plus special safety systems. - Spillover valve to prevent high pressure when moving up. - Manual emergency valve to descend to the nearest floor and open the door during emergencies. - Pipe fracture valve to cut oil channel and stop falling if hydraulic system pipe fractures. - Temperature protection to halt operation if hydraulic oil temperature is unsafe, resuming once safe. Product Parameters: Model | Table size | Capacity | Lowest table surface height | Lifting travel distance EL1 | 2200*2000mm | 1000-1500kg | 300mm | 5000mm EL2 | 2200*2500mm | 1000-1500kg | 300mm | 5000mm EL3 | 2200*3000mm | 1000-1500kg | 300mm | 5000mm EL4 | 2200*2000mm | 2000-3000kg | 300mm | 5000mm EL5 | 2200*2500mm | 2000-3000kg | 300mm | 5000mm EL6 | 2200*3000mm | 2000-3000kg | 300mm | 5000mm EL7 | 2200*2000mm | 4000-5000kg | 300mm | 5000mm EL8 | 2200*2500mm | 4000-5000kg | 300mm | 5000mm EL9 | 2200*3000mm | 4000-5000kg | 300mm | 5000mm Basic Info: - Model NO.: EL1500 - Type: Power-Driven - Load Capacity: 1000kg - Speed: 4-9m/Min - Open & Close Type: None - Lift Mechanism: Lift Chain - Deceleration Device: With Deceleration Device - Guide Rail: Circular Guide - Elevator Door: Rolling Shutter Door/Guardrail - Door Knife: Double - Attendant: Without Attendant - Structure: Piston Cylinder - Material: 27simn Seamless Steel - Dimension(L*W*H): 2200*2000mm - Color: Customer's Request - Application: Goods Lifting - Keyword: Hydraulic Stationary Scissor Lift - Transport Package: 1PC/Wooden Case - Specification: customizable - Trademark: Buytool - Origin: Made in China - HS Code: 8427900000 - Production Capacity: 1000PCS/Month Packaging & Delivery: - Package Size: 220.00cm * 220.00cm * 300.00cm - Package Gross Weight: 350.000kg Shipping & Policy: - Shipping Cost: Contact the supplier about freight and estimated delivery time. - Payment Methods: Support payments in USD - Secure payments: Every payment you make on Made-in-China.com is protected by the platform. - Refund policy: Claim a refund if your order doesn't ship, is missing, or arrives with product issues. Customization: Available After-sales Service: 24 Hours Online Service Warranty: 1 Year
