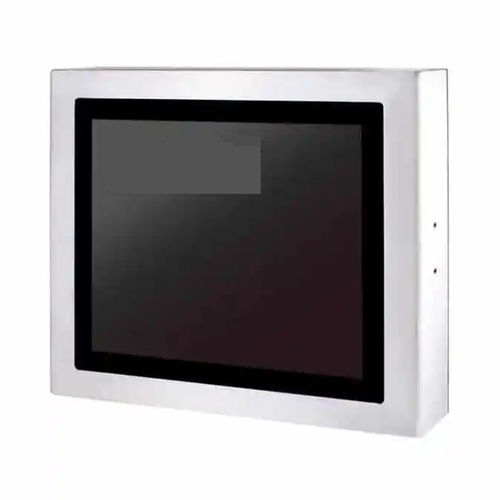

TFT monitor IM122 series

with PCT touch screen12.1"1024 x 768

Available in ambient or wide temperature operational options High bright (up to 1600 cd/m2) or optical bonded options for sunlight readability 12 volt DC or 9V to 36V voltage input Colors - 16.7M - Luminance - 350 cd/m2 - Contrast Ratio - 800:01:00 - View Angle (H/V) - 160°/160° - High Brightness (Optional) - Colors - 16.7M - Luminance - 1000 cd/m2 - Contrast Ratio - 800:01:00 - Viewing Angle (H/V) - 160°/160° Mechanical & Environmental - Operation Temp. - 0 ~ 45°C - Storage Humidity - 10 ~ 90%, non-condensing - Mount - VESA mount ( 75 X 75 mm) & Yoke mount - Dimension (WxHxD) - 347 x 276 x 57.5 mm - Weight - TBD Optional - P/N: 2351206003 - Full IP65 Waterproof Power adaptor with European power cord - ( 60W / 90 ~ 295V AC input / 12V DC output) P/N: 2352406011 - Full IP65 Waterproof Power adaptor with European power cord - (60W / 90 ~ 295V AC input / 24V DC output) P/N: 2351206004 - Full IP65 Waterproof Power adaptor with US power cord - ( 60W / 90 ~ 295V AC input / 12V DC output) P/N: 2352406012 - Full IP65 Waterproof Power adaptor with US power cord - (60W / 90 ~ 295V AC input / 24V DC output) P/N: 2320000001 - Optical Bonding - P/N: 302A17005A - 1600 cd/m2 12.1” LCD panel 1024 x 768 - P/N: 309M106004 - DC in 9 ~ 36V - P/N: 3120600002 - RS232 touch screen for IM122RS03/04
