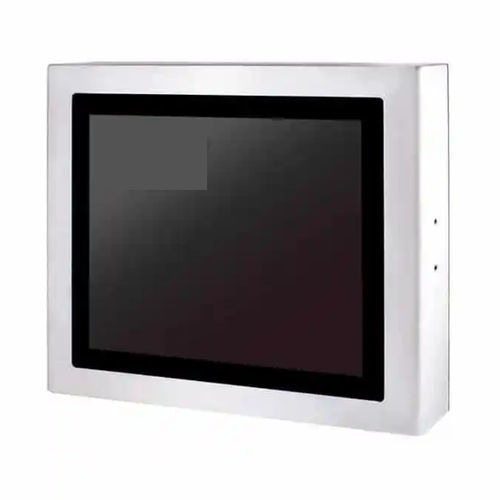

TFT-LCD monitor IM190 series

with PCT touch screen5-wire resistive touch screen19"

Available in ambient or wide temperature operational options High bright (up to 1600 cd/m2) or optical bonded options for sunlight readability 12 volt DC or 9V to 36V voltage input Colors - 16.7M Luminance - 250 cd/m2 Contrast Ratio - 1000:01:00 View Angle (H/V) - 170°/160° High Brightness (Optional) Colors - 16.7M Luminance - 1000 cd/m2 Contrast Ratio - 1000:01:00 Viewing Angle (H/V) - 170°/160° Operation Temp. - 0 ~ 45°C Storage Humidity - 10 ~ 90%, non-condensing Mounting - VESA mount (100X100mm) & Yoke mount Dimension (WxHxD) - 521 x 434 x 67 mm Weight - TBD Optional - P/N: 302A190091 - 1600 cd/m2 19” LCD panel 1280 x 1024 - P/N: 2351206003 - Full IP65 Waterproof Power adaptor with European power cord ( 60W / 90 ~ 295V AC input / 12V DC output) - P/N: 2352406011 - Full IP65 Waterproof Power adaptor with European power cord (60W / 90 ~ 295V AC input / 24V DC output) - P/N: 2351206004 - Full IP65 Waterproof Power adaptor with US power cord ( 60W / 90 ~ 295V AC input / 12V DC output) - P/N: 2352406012 - Full IP65 Waterproof Power adaptor with US power cord (60W / 90 ~ 295V AC input / 24V DC output) - P/N: 2320000001 - Optical Bonding - P/N: 309M106004 - DC in 9 ~ 36V - P/N: 3120600002 - RS232 touch screen for IM150RS03/04, IM170RS03/04, IM190RS03/04 - - - - - - - Ordering Information - Standard - IM190PS03 - 19” full IP65 display, true flat PCT, 1 x VGA, 1 x USB, - 1 x 1.8m VGA cable, 1 x 1.8m USB cable, 1 x DC in external power adapter - IM190PS04 - 19” full IP65 display, true flat PCT, 1 x VGA,1 x USB, 1 x HDMI, - 1 x 1.8m VGA cable, 1 x 2m HDMI cable, 1 x 1.8m USB cable, 1 x DC in external power adapter
