Pneumatic Electrical Hybrid Slip Rings
Pneumatic,hydraulic-Electrical hybrid slip rings is also called pneumatic,hydraulic rotary joint,is a pneumatic slip ring,electric swivel slip ring,hydraulic slip ring,rotating gas joint assembly.This product transmits the electric power and other signals combined with gas,liquid,hot oil or other media.ByTune has strong ability to offer special custom transmitting media designing in the slip rings, detailed custom information just consult us!

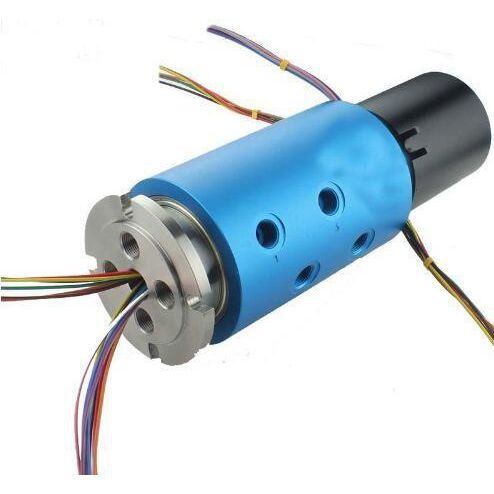

Pneumatic /Hydraulic rotary joint 4 passages + Electric slip ring
Gas (Vacuum, compressed air and other gases), liquid (hydraulic oil, coolant, water and other liquids), signal (Ethernet, Ethernet, and so on) USB, high-definition video, digital machine and a variety of control signals) Can be mixed transmitted by ByTune this product for gas and electricity high-tech automation equipment, especially in some wet, sea and other harsh environments can choose this slip ring rotary joint.
(Rotary joints,Pneumatic/Hydraulic Slip rings)Rotary joints, rotary unions, designed for air, vacuum and fluid,coolant,gas,oil,steam,water.)
1/2/3/4/5/6/8/10/12/16 passageway Pneumatic/Hydraulic rotary joints.
Can combine 1~128 wires electrical power/signal.
Connection Size: M5,G1/8",G1/4",G3/8",G1/2"
Media Types: Air/Gas, Chemical, DI / Tap Water, Oil, Water/Glycol.
Solid or Through bore are both available
60% of Flyda sales are customized solutions
Specification data
Circuits - 1~120circuits(or more)
Current Rating - 7500VAC
Dielectric Strength - 1000VAC@50Hz between circuits
Electrical Noise - ≤5MΩ
Inner Diameter - 1000MΩ@500VDC
Torque - 4mm~980mm
Shock Resistance - ≤1N.m
