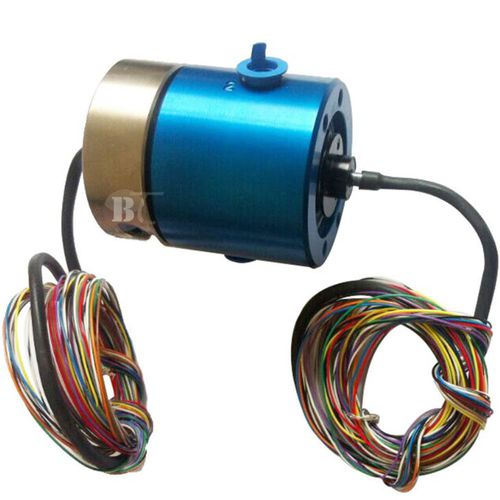

Electric slip ring

hybridgasIP54

Pneumatic Slip Rings Hybrid With Electrical Circuits Pneumatic Slip Rings hybrid with electrical circuits,ByTune innovates and manufactures diverse special slip ring product for special device! Like this producrt, ByTune so not just process the electrical slip rings, but the pneumatic series is also our capability! Demanding tailor-making project,ByTune capable engineering team will be active to handle for you! Consult ByTune! More detailed information return you! Advanced /reliable sealing Pneumatic Slip Rings hybrid with electrical slip ring A pneumatic slip ring is a mechanism used to transfer fluid (under pressure or vacuum) from a stationary inlet to a rotating outlet, preserving and isolating the fluid connection. Pneumatic slip rings are engineered to endure a wide range of temperatures and pressures for a variety of conditions and environments. In addition, rotary unions may integrate multiple passages and handle different types of fluid simultaneously. Parameters Media types - Typical for Gas ( Option: Water, Steam, Coolant, Glycol) Channel - 2 channels, more channels optional Passage Size - 1/8" , 3/8" Max Operating Pressure - 600psi Max Vacuum - 30HG Max Rotational Speed - 500rpm Operating temperature - -40℃～+110℃ Others - Hybrid with electrical channels Electrical Data Rated Voltage - 240V,380V,600V or others Rated Current - 5A,10A,15A,20A or others Insulation Resistance - ≥1000MΩ@500 VDC Dielectric Strength - 1000VAC@50Hz 60s Electrical Noise - ≤7 mΩ Mechanical Data IP Grade - IP54,IP65 or others Torque - ≤9.25g·m
