Standard bucket BM series
for excavatorsfor skid steer loaders

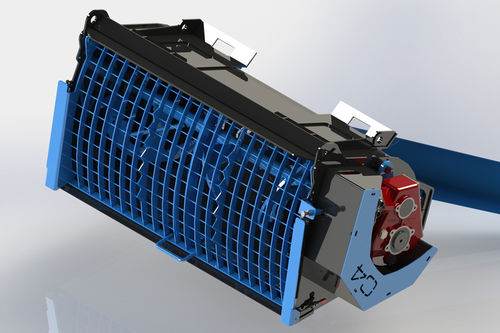

Standard bucket - BM series - C4 Meccanica srl - for excavators / for skid steer loaders

Standard bucket - BM series - C4 Meccanica srl - for excavators / for skid steer loaders - image - 2

Standard bucket - BM series - C4 Meccanica srl - for excavators / for skid steer loaders - image - 3

Standard bucket - BM series - C4 Meccanica srl - for excavators / for skid steer loaders - image - 4

Standard bucket - BM series - C4 Meccanica srl - for excavators / for skid steer loaders - image - 5

Standard bucket - BM series - C4 Meccanica srl - for excavators / for skid steer loaders - image - 6

Add to favorites

Compare this product

Characteristics

Type: standard
Load-bearing: for excavators, for skid steer loaders
Carrier weight: 500 kg, 780 kg, 930 kg, 1,250 kg, 1,500 kg
(1,102 lb, 1,720 lb, 2,050 lb, 2,756 lb, 3,307 lb)
Capacity: 150 l, 200 l, 250 l, 350 l, 450 l
(39.63 gal, 52.83 gal, 66.04 gal, 92.46 gal, 118.88 gal)
Bucket weight: 200 kg, 310 kg, 350 kg, 450 kg, 510 kg
(440.92 lb, 683.43 lb, 771.62 lb, 992.08 lb, 1,124.36 lb)
Hydraulic pressure: 140 bar
(2,030.53 psi)

Description

• Orbital motor with relief valve integrated. Transmission with reducer. • Standard with 1.8mt hydraulic hoses. Quick couplings included. • The particular configuration of the rotor and the mixing arms allows the drain connector to be in a central position, the discharge is opened by means of a hydraulic cylinder, controlled by a six-way solenoid valve. • Standard skid-steer attachment. • Slide with quick coupling, which can be positioned without the need to stand under the machine, thus avoiding dangerous situations. • Rotating slide, has the possibility of being rotated 360 degrees. • Slide mounted on a swivel ring, which has the possibility of being rotated 360 degrees.
