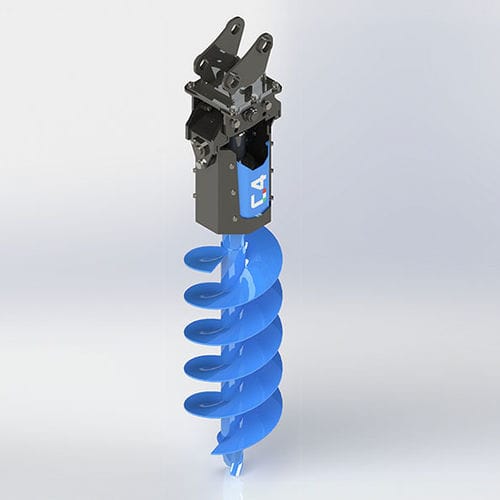

Hydraulic auger T Series

for excavatorshelical

• T/TV SERIES: Traction with reduced motor, inside the frame, protected from impacts or strokes. • T SERIES: Upper attachment characterized by double joint mounted on self-lubricating bushings, with possibility to block the rotations by screws. • T/TV SERIES: Standard with 1.6mt hydraulic hoses. • 1mt long Standard tip, available in 8 cuts: with diameter 100, 150, 200, 250, 300, 350, 400, 500. Hexagon of 50mm or 70mm, depending on the model. • 1mt long Rock tip, available in 8 cuts: with diameter 100, 150, 200, 250, 300, 350, 400, 500. Hexagon of 50mm or 70mm, depending on the model. • Stump grinder, available in 3 cuts: with diameter 200, 300, 400. Hexagon of 50mm or 70mm, depending on the model. • Conical tip, available in 3 cuts: with diameter 40, 170, 200 e 250. Hexagon of 50mm or 70mm, depending on the model. • 1mt extension with or without propeller, propeller diameter available in 8 measures : 100, 150, 200, 250, 300, 350, 400, 500. • T SERIES: Leaving the double joint free, the drill allows to maintain the perpendicularity with the ground, avoiding complicated maneuvers of positioning the arm. This is useful in applications with standard tip and rock tip. • With stup grinder and conical tip, the rotation blocks on the two pins help to precisely direct the tip and apply pressure on the wood without the auger being subjected to spontaneous movements. In addition, for special jobs where it is necessary to use the drill at unusual angles, three positions have been introduced for the upper pivot to tilt the auger forward or backward by about 25 degrees.
