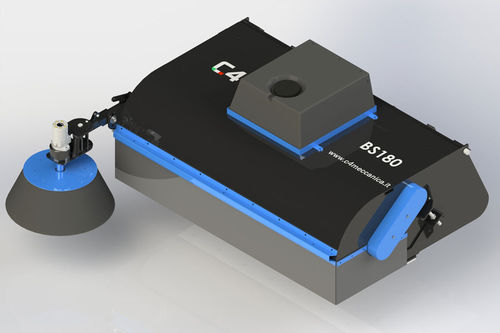

Skid steer loader sweeper BS series
hydraulicfront roller

Skid steer loader sweeper - BS series - C4 Meccanica srl - hydraulic / front roller
Skid steer loader sweeper - BS series - C4 Meccanica srl - hydraulic / front roller
Skid steer loader sweeper - BS series - C4 Meccanica srl - hydraulic / front roller - image - 2
Skid steer loader sweeper - BS series - C4 Meccanica srl - hydraulic / front roller - image - 3
Skid steer loader sweeper - BS series - C4 Meccanica srl - hydraulic / front roller - image - 4
Skid steer loader sweeper - BS series - C4 Meccanica srl - hydraulic / front roller - image - 5
Skid steer loader sweeper - BS series - C4 Meccanica srl - hydraulic / front roller - image - 6
Add to favorites
Compare this product

Characteristics

Type
for skid steer loaders
Motor type
hydraulic
Other characteristics
front roller
Working width

Min.: 1,500 mm
(59 in)

Max.: 2,550 mm
(100 in)

Weight

400 kg, 425 kg, 450 kg, 500 kg
(882 lb, 937 lb, 992 lb, 1,102 lb)

Description

• Engine supported by extension with bearings inside the machine. • Chain transmission. • Front and side rubber protection. • Standard with attachment for skid-steer. • Slotted brush support arm, to ensure constant resting on the ground and avoid damaging the brush unit. • Front roller connected to the collection bucket by hinges to facilitate cleaning of the machine. With adjustment of the rotor height to guarantee optimal functioning and compensate for the progressive wear of the brushes. • Side brush, adjustable in 4 positions. High rest location and close to the machine for not occupy the roadway • Polypropylene brush set or steel brushes for heavier jobs. • Standard with 1.8mt hydraulic hoses. Quick couplings included.
