pulsed fiber laser marking device / compact / high-speed
pulsed fiber laser
High beam quality and high pulse peak powers
The performance and quality of markings mainly depend from the output power and the laser beam focus.
cab XENO 4 marking lasers are diode-pumped and air-cooled. They have high beam quality and high pulse peak powers. Laser sources are provided with 20, 30 and 50 Watt.
Different plano-spherical lenses enable marking in fields from 69 x 69 mm to 290 x 290 mm.
Marking is possible on plastics, metals and painted surfaces.

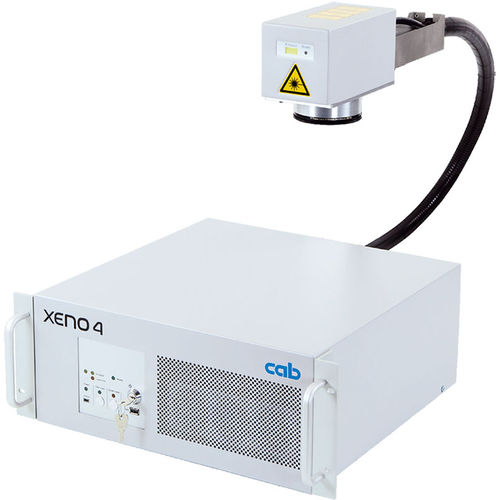

XENO 4 marking lasers consist of two units: The control unit has the beam source integrated, whereas the scan head is connected with the beam source via a fiber. It can be assembled in any orientation.
The integrated focus finder simplifies workpiece positioning.
• cab marking lasers XENO 4 represents
• a compact scan head,
• high operation speeds,
• integrated focus finding,
• shifting the marking plane quickly,
• Industry 4.0,
• TCP/IP control and monitoring
providing process control and monitoring
1 Ethernet 10/100 Mbit/s to connect a PC. As delivered, the device has been configured with an IP address or in DHCP mode.
2 Ethernet 10/100 Mbit/s to connect peripheral devices. Bidirectional data transfer from and to end devices
3 + 4 2 x RS232 C to connect peripheral devices. Bidirectional data transfer from and to end devices
5 Digital I/O control and monitoring. Provided are 8 inputs and outputs, freely programmable. Circuit protected according to IEC 61131-2
6 Remote laser switch-on and control
7 Interlock / E-stop to integrate to external safety circuits and connect an external E-stop
