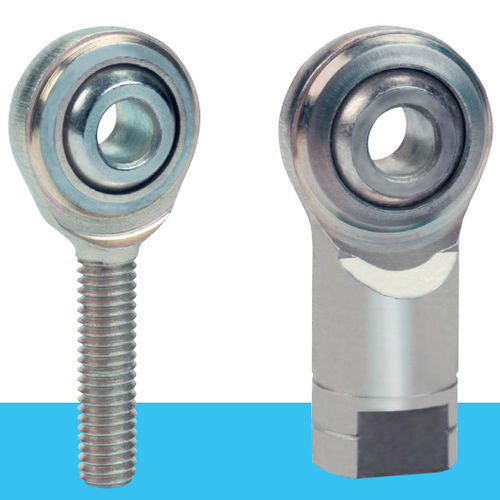

Female rod end EM-M/EF-M series

carbon steelbronzezinc

Suitable for many light to heavy duty industrial/mechanical motion transfer applications, the 2-piece metal to metal EM-M/EF-M Series offers an economical design in metric sizing. Common Applications: Construction equipment, lawn and garden, truck and bus • Long life and low maintenance cost - Oil impregnated bronze raceway delivers high precision and frictionless performance • Extended corrosion resistance - Ball and body materials are produced from low carbon steel and are zinc plated with clear dichromate treatment • Ball is case hardened for extended wear • Wide temperature range • Optional PTFE liner delivers moisture resistance and self-lubricates, minimizing wear, reducing maintenance, and increasing rod end life (ball on PTFE version is electroless nickel plated) Material: Ball and Race – • Case hardened • Electroless nickel plated (for PTFE version) Liner (optional) – • PTFE, bonded to body I.D Temperature range: -55°F — 250°F (-54°C —121°C) Thread: Right or left-handed versions Studded: Optional PTFE lined: Optional Grease fittings: Optional on metal to metal series Custom assemblies can be built to specification Meets SAE specification J1259
