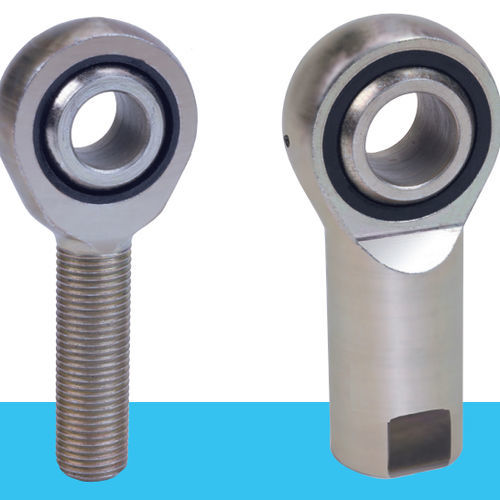

Male-female rod end SPM/SPF

carbon steelzincself-lubricating

Our most popular series, SPM/SPF rod ends are suitable for many light and heavy/medium duty industrial mechanical motion transfer applications. They are well suited for applications requiring low friction, low moisture absorption, high wear resistance and/or wide operating temperature ranges. Common Applications: Construction equipment, recreational vehicles, and truck/off highway. • Injection molded, reinforced nylon raceway design delivers self-lubricating, low friction, and moisture-resistant performance • Extended corrosion resistance - Ball and body materials are produced from an economical low carbon steel and are zinc plated with clear dichromate treatment (ball is case hardened for extended wear) • Design allows for control of breakaway torque, adding to its application versatility Temperature range: -30°F – 220°F (-34°C – 104°C) Thread: Right or left-handed versions Studded: Optional - Custom assemblies can be built to specification Custom alloy construction available Meets SAE specification J1120
