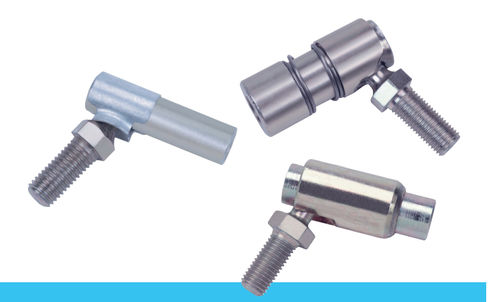

Angled ball joint S series

zinccarbon steelquick-disconnect

Suitable for light to medium-duty linkage applications requiring quick disconnect capabilities, the S/SS/SC Series offers three styles of fast assembly/disassembly ball joints: Spring loaded sleeve, smaller ball joint sizes Exposed spring loaded sleeve, larger sized applications Ball stud is retained by a spring clip, for lower load and fewer disconnection requirements Common Applications: Cable assemblies, light industrial, agricultural, lawn and garden, and racing throttle links • S and SS ball joints are designed for an application where quick connect or disconnect is needed at assembly or in field servicing • The SC spring clip ball joint is designed for low force mechanical linkages such as carburetor or fuel injection applications • Extended corrosion resistance - Components are produced from low carbon steel, zinc plated, and clear dichromate treated • Maximum wear resistance - Ball stud is heat treated on all models for extended wear resistance • Easy access and fast maintenance with quick pull back, “no tools required” disconnect assembly Material: Ball Stud – • Low carbon steel, heat treated • Zinc plated, clear dichromate treated Sleeve – • Low carbon steel • Zinc plated, clear dichromate treated Body S and SS – • Low carbon steel Body SC – • Low carbon steel, heat treated • Zinc plated, clear dichromate treated Spring S and SS – • Stainless steel Spring Clip SC – • Hardened spring stee Temperature range: -60°F – 250°F (-51°C – 121°C) Threads: Right or left-handed Available in metric sizes Custom assemblies can be built to specification S/SS series meets SAE specification J490 (S: type S/style 1 SS: type S/style 2)
