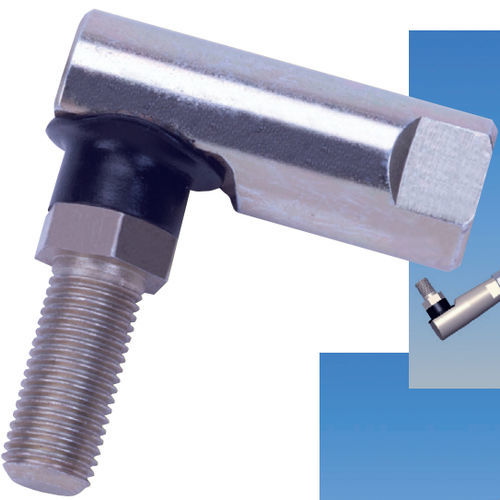

Angled ball joint SR-G series

zinccarbon steelrubber

The SR-G Series offers many similarities to our metal to metal R-G ball joint design – but with a hardened steel housing and ball stud combination to increase overall wear life. This design is ideal for applications with excessive vibration, shock loads or heavy wear conditions and is an economical solution to medium to heavy-duty applications. Common Applications: Lawn and garden equipment, construction, and industrial equipment • All parts are manufactured from low carbon steel and heat-treated for long life and wear resistance • Corrosion resistant - Zinc plated and clear dichromate treated • Retaining ring assembly helps to prevent ball stud pull out in higher force applications • Contaminant proof - Rubber grommet provides a durable seal against outside elements Material: Ball Stud – • Low carbon steel, heat treated • Zinc plated, clear dichromate treated Body – • Low carbon steel, heat treated • Zinc plated, clear dichromate treated Retaining Ring – • Galvanized music wire • Stress relieved Temperature range: -30°F – 250°F (-34°C – 121°C) Threads: Right or left-handed Available in metric sizes Custom assemblies can be built to specification,
