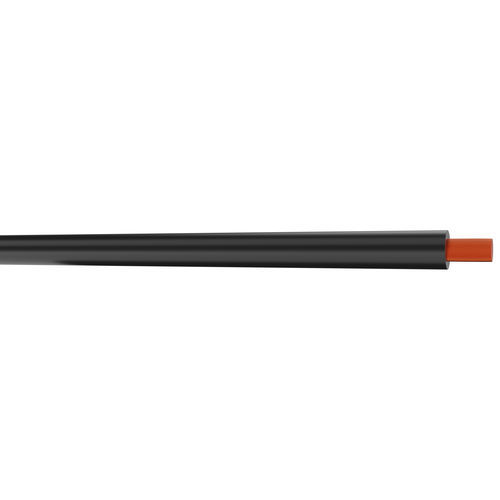

Power cable H01N2-Dmulti-strandindustrialoutdoor
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- multi-strand
- Applications
- industrial, outdoor, for marine applications, for the automotive industry, welding
- Number of wire
- single-core
- Color of the insolation
- black
- Norms
- IEC
- Other characteristics
- flexible
- Nominal voltage
100 V, 1,000 V
- Temperature
Max.: 85 °C
(185 °F)Min.: -20 °C
(-4 °F)- Cross-section
Max.: 95 mm²
(0.15 in²)Min.: 16 mm²
(0.02 in²)
Description
H01N2-D and H01N2-E cables are intended for connections between the welding workstation and the electrode. Their elastomer sheath suits high mechanical applications, and outdoor installation. These cables are used for welding workstations in industry, for the car and shipbuilding industry among others, machine tool manufacturing and for portable electrodes, for example in workshops or on construction sites. They are available in flexible or extra-flexible versions.
Product range - Axindus
Type of assembly - Single conductor
Shielding Y/N - No
Green/Yellow Conductor - No
Component Standard - EN 50525-2-81
OBSO_Static radius of curvature - D = 12 x Ø / E = 10 x Ø
Temperature Fixed Use ( -x°C / +x°C) - -20°C / +60°C
Independent laboratory certification - No
