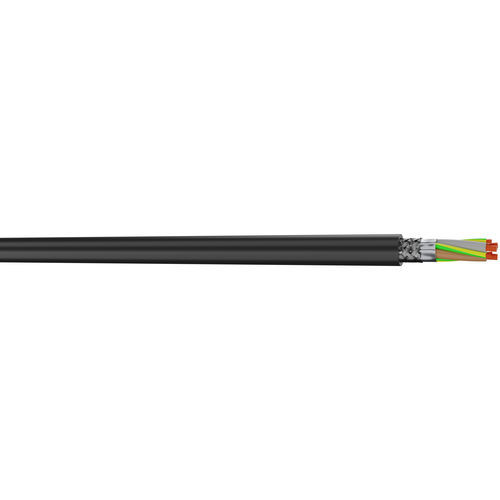

Power cable 2XSL(St)CY-Jinsulatedflame controlarmored
Add to favorites
Compare this product
Characteristics
- Type
- power
- Protection
- insulated, flame control, armored
- Core material
- copper
- Applications
- control, outdoor, underground, for electric motors, variable speed drive
- Number of wire
- 3 wires, 4 wires
- Material of the insulation
- XLPE-insulated
- Color of the insolation
- black
- Norms
- IEC 60332, EN 60228
- Nominal voltage
Min.: 600 V
Max.: 1,000 V
- Temperature
Min.: -30 °C
(-22 °F)Max.: 70 °C
(158 °F)
Description
2XSL(St)CYK-J cables due to their double shieldinga and their insulations XLPE 90°C, are used as power cables, connecting and linking cables for motors and frequency inverters, in fixed installations and mobile use, sometimes with free movement, without tensile force and without forced guidance. The version with black outer sheath (UV protection) is suitable for outdoor installation.
Product range - Axindus
Type of assembly - Multi conductors
Shielding Y/N - Yes
CPR class - Eca
International Fire Standard - IEC 60332-1
OBSO_Dynamic radius of curvature - 20 x Ø
OBSO_Static radius of curvature - 10 x Ø
Temperature Fixed Use ( -x°C / +x°C) - -30°C / +70°C
Independent laboratory certification - No
Catalogs
2XSL(St)CY-J 0,6/1 kV CEM,
2 Pages
