Digital camera SoundCam Bionic S

acousticmeasuringhyperspectral

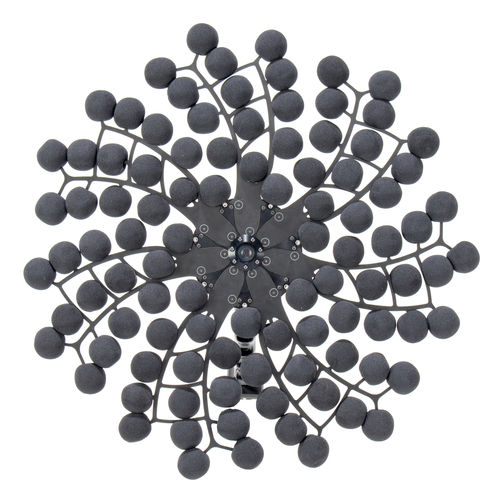

The Bionic S microphone array has a diameter of 54 cm and consists of 112 microphones. It is engineered for use from 400 Hz. The optimized microphone distribution guarantees a perfect sound source localization and a high dynamic range. The seven detachable microphone arms (setup about 1 minute) make the system very mobile with a small package size. The data acquisition hardware is integrated in the acoustic camera so there is no need to use external measuring equipement. Using the handle and the integrated rechargeable battery inthe acoustic camera makes the system perfect for mobile use. Typical applications are environmental measurement, leakage detection and squeak, buzz and rattle localization. size of the acoustic camera 540 mm Spezifikationen der akustischen Kamera <33 dB to 120 dB with up to 40 dB dynamic number of microphones of the acoustic camera 112 MEMS-microphones, 24 bit resolution, Samplerate 48 kHz, frequencyrange 10 Hz - 24 kHz recommend frequency range of the acoustic camera from <40 Hz with the holgraphy-method from 400 Hz with beamforming-methods; below with decreased resolution material of the acoustic camera fibre-reinforced polymer weight of the acoustic camera 3,3 kg The Noise Inspector software is the standard solution for visualizing sound sources. The application-oriented software guides you from data acquistion to analysis to saving and reporting of acoustic data. •Online- and offline analysis •Acoustic-photo und acoustic-video •A lot of HD algorithms: Beamforming, EVOB, CLEAN SC, MUSIC, Capon, DAMAS, Real 3D Beamforming,... •Frequency analysis and time-frequency analysis (sonogram) •Acoustic weighting (A, B, C) or linear presentation
