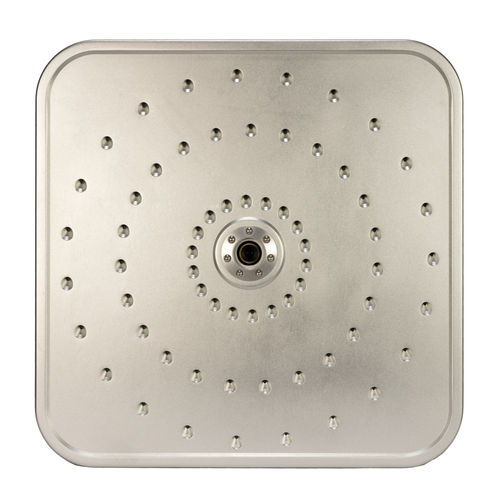

Acoustic camera SoundCam 2.0 Sensor

machine visionfor process monitoringrugged

The SoundCam 2.0 Sensor is an acoustic camera covering the audible and ultrasonic frequency ranges. It has a USB and an ethernet interface, which allow connection to a remote PC. The supplied PC software will show the location of acoustic events in real-time at up to 100fps, overlaid on the camera image. One or more of these sensors can be combined into your own applications to form complex machine monitoring, leak detection, or animal or traffic monitoring networks, for example. Since the ultrasonic range is also included, electrical discharge or arcing can be monitored over vast networks. The robstuness, compact and waterproofed design makes it highly suitable for outdoor use. No other acoustic camera is so robust and flexible, opening up infinite possibilities for new applications! The interface description allows to write own analysis software for the SoundCam. The sensor consists of 64 microphones with a sampling rate of 200 kHz and an optical camera. The high speed and accuracy make the system also applicable in a very high frequency range up to 60 kHz. Size of the acoustic camera - 350 x 350 mm Recommended frequency range for the acoustic camera - from 2000 Hz with the beamforming methods; Production material of the acoustic camera - aluminum Weight of the acoustic camera - 5.6 kg
