Water level sensor ULM30ultrasonic4-20 mARS-485
Add to favorites
Compare this product
Characteristics
- Technology
- ultrasonic
- Medium
- for water
- Interface
- 4-20 mA, RS-485
- Applications
- for basin, river
- Other characteristics
- ultra-rugged, programmable, with temperature measurement, smart
- Level range
Max.: 15 m
(49'02" )Min.: 0.5 m
(1'07" )- Process temperature
Max.: 60 °C
(140 °F)Min.: -40 °C
(-40 °F)
Description

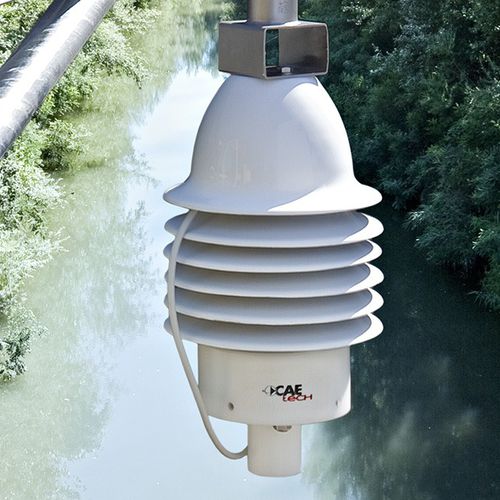

ULM30 is an ultrasonic hydrometric level sensor, equipped with its own electronics with microprocessor and storage memory.
ULM30 consists of a latest generation ultrasonic transducer, suitable for both transmission and reception. Water level measurement takes place with the emission of a series of ultrasonic pulses and subsequent analysis of the echo received. The sensor, via this data, appropriately compensated according to the air temperature measured by the integrated thermometer, provides the distance from the target surface.
ULM30 contains internal diagnostic elements to verify the:
battery voltage;
internal temperature conditions;
correct inclination;
quality of the measurement acquired.
DIMENSIONS
210(Ø) x 390 mm
WEIGHT
2.25 Kg
RESOLUTION
1 cm
