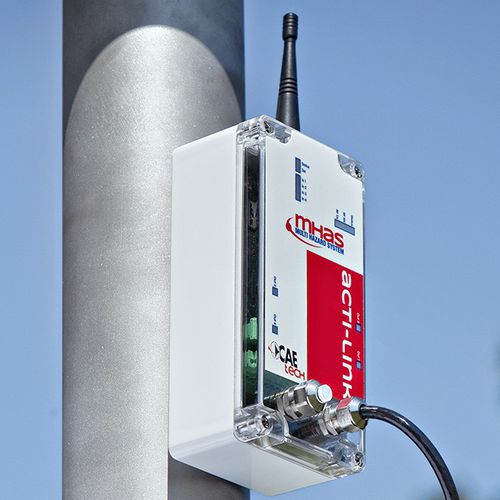

2 port communication module ACTI-Link

RS-485RS-232Modbus

The ACTI-Link Remote Serial Interface was created to remotely control a serial interface. The typical situation in which the ACTI-Link Remote Serial Interface is used is the serial communication between a station and a sensor installed in a remote location, such as not to be able to be wired. The controller, implemented with a microcontroller board, on the one hand manages a two always-on serial interfaces (one RS232 and one RS485) and on the other the RF communication protocol. POWER 12÷14 V OPERATING FREQUENCY 868÷870 MHz WEIGHT 690 g HOUSING PROTECTION IP65 TRANSMISSION RANGE With optical visibility up to 5.9 Km, otherwise 3 Km DIMENSIONS 160 X 40 X 80 mm (l x h x d) OUTPUT POWER 23÷27 dBm (500 mW) TEMPERATURE RANGE -40 °C /+60 °C (-40°F/+140°F) RECEIVER SENSITIVITY -120 dBm
