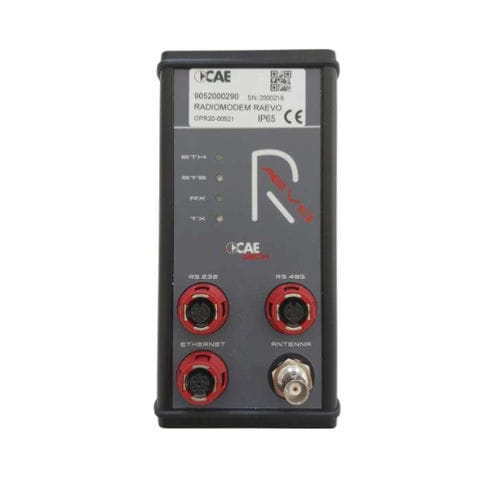

Point-to-point modem RÆVO

repeaterRS232RS485

The RAEVO radio modem is designed to be employed in the creation of networks distributed throughout the territory and can be used as a terminal or a repeater. The operating mode of the single radio modem can be configured both with pairs of frequencies (Tx/Rx) and with a single frequency, in the UHF band. The radio modem is suitable for the creation of Point-to-Point and Point-to-Multipoint connections, even with very complex networks that require very low consumption. The RAEVO facilitates interfacing with external devices via 3 ports: RS485, RS232 and Ethernet. The RAEVO radiomodem is a CAETech product and, as such, is capable of interacting with various devices and applications, indeed, the radio is able to transport standard protocols: UDP/IP or Modbus RTU, and is therefore compatible with radios from different manufacturers. As per all CAEtech products, it implements Zero Breakdown Technology logic, hence it is also configurable for sending diagnostic information to the operations center, in addition to implementing the use of Forward Error Correction (FEC), a mechanism for detecting and subsequent correction of errors. POWER 10 ÷ 16 Vdc FREQUENCY 403-473 MHz MODULATION 4FSK, 8FSK, 16FSK OUTPUT POWER 1W RADIOSENSITIVITY -115 dBm (ETSI EN 300 113)
