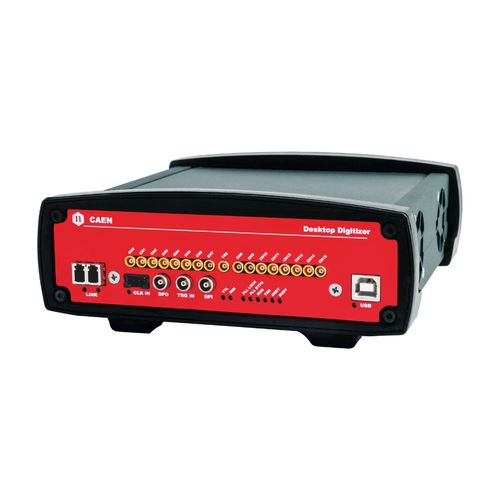

Up to 5 GS/s digitizer DT5742

16-channel12-bitPCIe

The Mod. DT5742 is a Desktop module housing 16+1 Channel 12 bit 5 GS/s Switched Capacitor Digitizer. The input dynamic range is 1 Vpp on single-ended MCX coaxial connectors (16-bit DAC on each channel to control the DC Offset). The digitizer is based on the Switched Capacitor Array DRS4 chip (Domino Ring Sampler). This technology relies on a series of 1024 capacitors (analog memory) in which the analog input signal is continuously sampled in a circular way. The sampling frequency is 5 GHz by default and it can be programmed to 2.5 GHz, 1GHz, and 750 MHz. The analog to digital conversion is not simultaneous with the chip sampling phase, and it starts as soon as the trigger condition is met, thus producing a dead time of 110 μs in case only the analog inputs are digitized, 181 μs when also the fast trigger TR0 is digitized. When the trigger stops the DRS4 chip sampling (holding phase), the analog memory buffer is frozen, and the cell content is made available to the 12 bit ADC for the digital conversion. The digital memory allows to store subsequent events, even if the readout is not yet started. Moreover, since the digital memory buffers work like FIFOs, the readout activity from USB or Optical Link does not affect write operations of subsequent events. The available trigger sources are: External Trigger, trigger on TRG-IN connector, common to all enabled groups. Fast (Low Latency) Local Trigger, trigger on TR0 connector, common to all enabled groups. This mode is called “Fast” or “Low Latency” since the trigger latency to hold the DRS4 is reduced with respect to the external trigger.
