Low-voltage motor HM series
asynchronoussingle-phase380 V

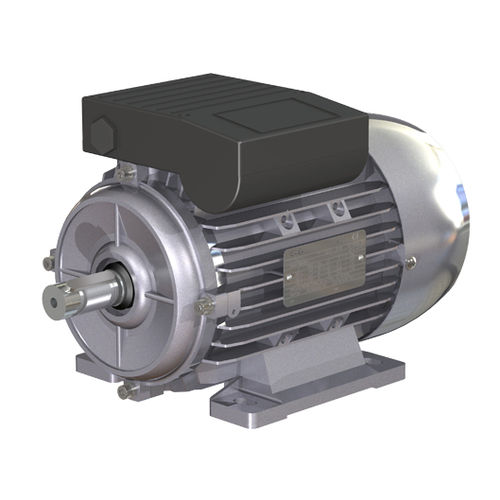

Low-voltage motor - HM series - CAG Electric Machinery s.r.o. - asynchronous / single-phase / 380 V
Low-voltage motor - HM series - CAG Electric Machinery s.r.o. - asynchronous / single-phase / 380 V
Low-voltage motor - HM series - CAG Electric Machinery s.r.o. - asynchronous / single-phase / 380 V - image - 2
Add to favorites
Compare this product

Characteristics

Type
asynchronous, single-phase
Voltage
380 V
Configuration
with run and start capacitors, aluminium
Protection class
IP55, IP65, IP56, IP66, IP67, IP68, IP64
Number of poles
4-pole, 2-pole
Other characteristics
low-voltage
Power

Max.: 3 kW
(4.08 hp)

Min.: 0.06 kW
(0.08 hp)

Rotational speed

1,500 rpm, 3,000 rpm
(9,424.778 rad.min-1, 18,849.5559 rad.min-1)

Operating temperature

Max.: 40 °C
(104 °F)

Min.: -20 °C
(-4 °F)

Description

HM motors are delivered in two variants. HM1 for the expected performance during the motor run or HM2 for the expected performance during the motor startup and run. In our company, the information on the label is true Do you merely want the lowest price, or are the motor parameters important to you? We calculate all electric designs ourselves, so we, unlike many, know what we manufacture. Motors within one day Our stock in the EU exceeds the value of one million EUR. Therefore, we can dispatch your orders within24 hours. Including motors with flanges or reduced axial heights. Error-free manufacture Since the end of 2018, the manufacture of HL motors has been fully automatic. We have thus eliminated human errors that could result in qualitative shortcomings. We provide complete servicing, diagnostics and calibration of electric motors and generators. Key services: . Installation . Commissioning . Preventive maintenance . Emergency services . Service contracts . Spare parts We prepare our training courses so that they provide your employees with the necessary skills to take proper care of your equipment. Key benefits: . Fast reactions and decision-making thanks to the knowledge of technology, activities and maintenance . Less downtime thanks to an improved equipment management and operation . Fewer maintenance issues . Better risk management thanks to the availability of trained staff
