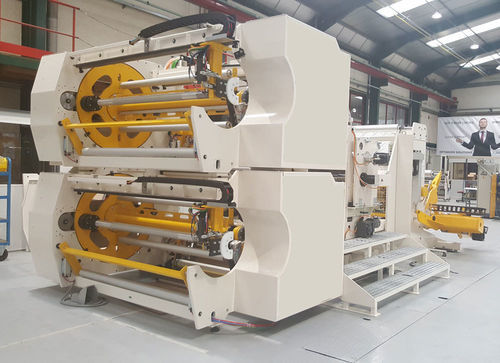

Duplex turret slitter-rewinder Infinity

high-speedwith two rewinding shaftshigh-productivity

Duplex Turret Slitter-rewinder for Extrusion Lines | Calemard

The Calemard® Duplex Turret Slitter-rewinder is designed for continuous winding of plastic films, rubber, nonwovens and technical materials directly downstream of extrusion lines. Its patented turret winding system enables automatic roll change without stopping or slowing down the production line, ensuring maximum productivity and uninterrupted operation.

Engineered for the most demanding industrial applications, including tire manufacturing, technical films, nonwovens and battery electrode production, this automatic slitter rewinder performs inline slitting and continuous rewinding of narrow strips down to 20 mm wide. Complete process automation minimizes material waste, maximizes operator safety and significantly improves production efficiency.

TECHNICAL DATA
Technical specifications may vary depending on the processed material* (slippery materials, tacky materials, tension-sensitive materials, etc.).

• Web width: 700 to 2,000 mm*
• Finished roll diameter: up to 600 mm*
• Finished roll weight: 100 to 250 kg*
• Maximum operating speed: 50 to 500 m/min*
• Minimum slit width: 20 to 30 mm, depending on parent roll width and machine configuration*

CONFIGURATION
Thanks to its modular design, the slitter-rewinder duplex turret can be configured with a wide range of modules:

• Dual liner unwinder: complete with web guiding, positioning and automatic splicing for continuous liner feeding.
• Accumulator: provides a buffer storage capacity of up to 60 meters of material.
• Inline slitting station: longitudinal slitting module featuring quick knife adjustment and edge trim extraction with trim separation and rewind/recycling.
• Automatic duplex turret rewinder: incorporates precise gap winding control to ensure stable, continuous non-stop winding.
• Robotic unloading cell: automatically unloads finished rolls without operator intervention.

A version equipped with our patented continuous spooling (traverse winding) technology is also available for very long-length products.

KEY BENEFITS & CALEMARD EXPERTISE

• Patented Non-Stop Winding: automatic roll change without slowing down the extrusion line, ensuring maximum production output.
• Advanced Web Tension Control: Calemard's core expertise guarantees consistent slitting quality and superior winding performance.
• Versatile Slitting Technologies: compatible with shear slitting, crush cutting, fixed razor blades and floating razor blades according to material requirements.
• Complete Automation: from automatic liner splicing to robotic unloading of finished rolls.

APPLICATIONS
Our duplex turret slitter-rewinders are successfully operating in demanding industrial sectors including:

• Tire manufacturing
• Plastic film and technical film extrusion lines
• Nonwoven and technical textile converting
• Battery electrode converting (anodes and cathodes)

MATERIALS

• Plastic films
• Technical films
• Rubber and elastomers
• Adhesive tapes
• Nonwovens
• Technical textiles
• Battery materials including electrodes, primed coated copper foil and primed coated aluminum foil

MAIN TECHNICAL FEATURES

• Process: Automatic duplex turret rewinding
• Slitting: Inline slitting of narrow strips down to 20 mm
• Feeding: Automatic liner splicing with 60-meter accumulator
• Peripheral equipment: Gap winding control, edge trim extraction and robotic unloading
• Optional technology: Patented continuous spooling (traverse winding)

WHY CHOOSE CALEMARD?
Since 1955, Calemard has been designing high-performance web converting equipment for demanding industrial applications worldwide. Our engineering team develops tailor-made solutions, from feasibility trials in our R&D center to installation, commissioning and after-sales support.

OUR QHSE COMMITMENT

• ISO 9001: Quality Management System
• ISO 45001: Occupational Health & Safety Management System
• EcoVadis Silver Medal: Sustainability & CSR Performance
