Textile slitter Phoenixrollautomatic
Add to favorites
Compare this product
Characteristics
- Applications
- textile
- Finished product
- roll
- Options
- automatic
Description

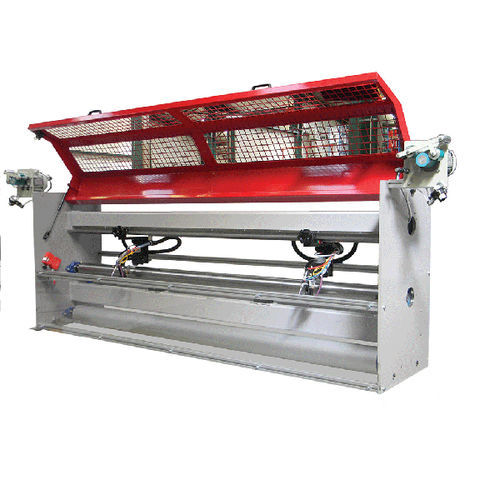

Multi-Point Textile Slitter for Edge Trimming and Center Slitting of Flexible Materials | Calemard
The Calemard Multi-Point Textile Slitting Bench is an in-line slitting system designed for edge trimming and center slitting of flexible materials. Suitable for textiles, but also nonwovens and other technical materials, it delivers precise slitting while integrating easily into existing production lines.
Key Benefits
Technical Specifications
Cutting Technologies
The Calemard Multi-Point Textile Slitter is available with several cutting technologies, selected according to the material being processed, the required cut quality and your production process.
Compatible Materials
Typical Applications
Why Choose Calemard Equipment?
Since 1955, Calemard has been designing and manufacturing web converting equipment for the textile, nonwoven, composite and technical materials industries. Supported by an integrated engineering department and a dedicated testing center, Calemard develops tailor-made solutions that meet each customer's specific production requirements.
Our QHSE Commitment
Looking for a solution tailored to your production line?
Contact our experts to discuss your application and receive a customized technical proposal.
The Calemard Multi-Point Textile Slitting Bench is an in-line slitting system designed for edge trimming and center slitting of flexible materials. Suitable for textiles, but also nonwovens and other technical materials, it delivers precise slitting while integrating easily into existing production lines.
Key Benefits
- Easy integration: Compatible with tenter frames, calenders, coating lines, impregnation lines, winders and other web converting equipment.
- Tailor-made cutting technology: Selection of the most suitable cutting method (hot cutting, cold crush cutting or ultrasonic cutting) according to your material characteristics.
- Multi-point slitting: Simultaneous edge trimming and center slitting operations reduce production time and improve overall productivity.
Technical Specifications
- Maximum web width: 2,400 to 3,400 mm
- Minimum cutting width: 600 mm
- Number of cutting points: Configurable
- Line speed: Up to 100 m/min
- Installation: In-line
- Construction: Guide frame with deflection rollers
Cutting Technologies
The Calemard Multi-Point Textile Slitter is available with several cutting technologies, selected according to the material being processed, the required cut quality and your production process.
- Hot cutting
- Cold crush cutting
- Combined (hot/cold, cold/ultrasonic)

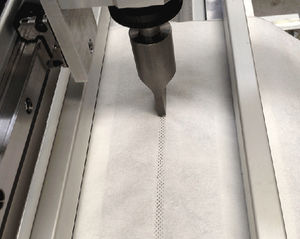

- Ultrasonic cutting
Compatible Materials
- Technical textiles
- Nonwovens
- Composite materials
- Coated fabrics
- Geotextiles
Typical Applications
- Filtration media
- Airbag fabrics
- Sun protection fabrics
- Blinds and curtains
- Conveyor belts
- And many other technical textile applications
Why Choose Calemard Equipment?
Since 1955, Calemard has been designing and manufacturing web converting equipment for the textile, nonwoven, composite and technical materials industries. Supported by an integrated engineering department and a dedicated testing center, Calemard develops tailor-made solutions that meet each customer's specific production requirements.
Our QHSE Commitment
- ISO 9001: Quality Management System
- ISO 45001: Occupational Health & Safety Management System
- EcoVadis Silver Medal: Sustainability Performance
Looking for a solution tailored to your production line?
Contact our experts to discuss your application and receive a customized technical proposal.
