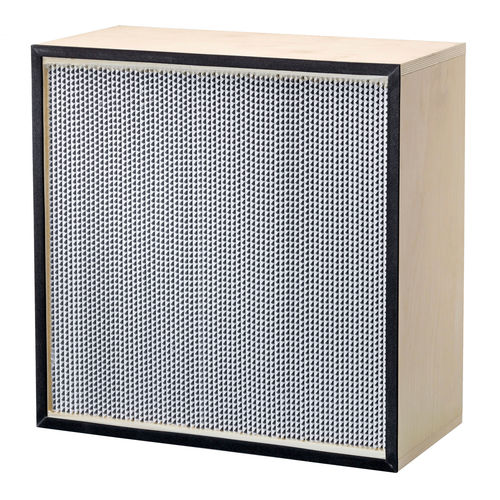

Air filter Super Absolute series

panelfiberglassexhaust

HEPA filter in filterclass H13 & H14 for supply- or exhaust air system, that require high mechanical strength and an increased airflow. Temperature range above 70°C (maximum 110°C). Pleats are uniformly separated by conical corrugated aluminum separators for highest possible media area within this filter type class. High airflow (up to 2,2 m/s) Very high mechanical strength Increased temperature resistance (up to 110 °C) 100% leak-free : individually scan tested High dust holding capacity APPLICATION HEPA-filter for high air flows FILTER FRAME Plywood MEDIA Glass fiber RELATIVE HUMIDITY 100% RECOMMENDED FINAL PRESSURE DROP 2x Initial pressure drop SEPARATOR Aluminium GASKET Polyurethane, endless foamed SEALANT Polyurethane MAX AIRFLOW Can be calculated on request COMMENT All filter tested acc. to EN 1822 with individual protocol
