Electronic pressure and vacuum switch SWCN series
for gasIP65compact

Electronic pressure and vacuum switch - SWCN series - CAMOZZI AUTOMATION - for gas / IP65 / compact
Electronic pressure and vacuum switch - SWCN series - CAMOZZI AUTOMATION - for gas / IP65 / compact
Electronic pressure and vacuum switch - SWCN series - CAMOZZI AUTOMATION - for gas / IP65 / compact - image - 2
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Technology
electronic
Fluid
for gas
Protection level
IP65
Other characteristics
compact, high-precision, with digital display
Pressure range

Max.: 10 bar
(145.04 psi)

Min.: -1 bar
(-14.5 psi)

Process temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Description

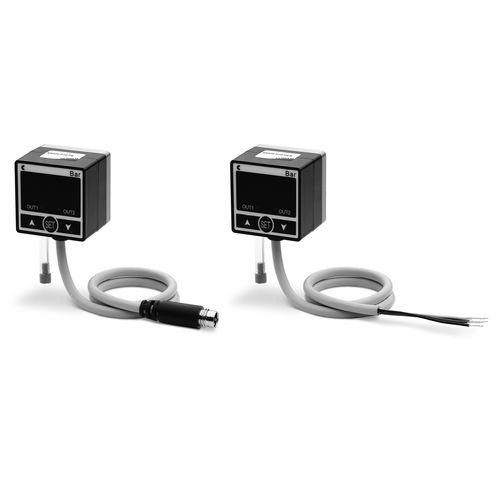

» Compact and lightweight » Digital indicator: precise electronic insertion with two separated switch outputs » Switching point and hysteresis can be programmed with a membrane keypad » Upper and lower limit values can be programmed through two PNP switch outputs » Analog output 4-20 mA » IP65 protection APPLICATIONS: - electronic vacuum/pressure switch for safety monitoring, optimization of cycle times or energy saving devices; - it can be installed directly on the gripping point of a handling system; - setting of the limit vacuum value and continuous vacuum control; - perfectly suitable for customer needs. ELECTRIC CONNECTION: the device is available with hardwired cable of 2 meters or can be supplied with M8 connector. Accessories and extensions have to be ordered separately. Codes can be found at the end of this section.
