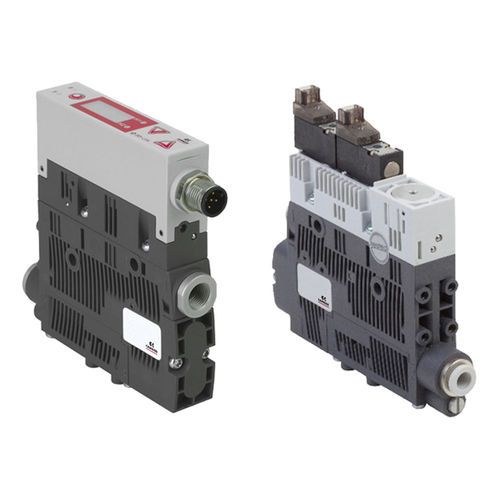

Lubricated Venturi ejector VES series

single-stagesuctionsmall

Compact vacuum generators with a high suction speed and reduced air consumption. Nozzle diameter: 1,0 - 1,5 mm. Series VES compact ejectors are available in three versions: with control solenoid valves without air saving circuit (B), with digital inputs and air saving circuit (S) and with I/O-Link communication and air saving circuit (I). Reduced weight and dimensions make this series the perfect solution for handling small, smooth and non porous or slightly porous items in dynamic applications. These devices are frequently used in automated systems with high cycle rates like, for example, industrial robots and gantry systems. Description - Basic ejector Materials - Body made of plastic Brass nozzle Suction capacity - 36 l/min (10) - 65.6 l/min (15) Vacuum max. - 85 % Nozzle - 1,0 mm (10) - 1,5 mm (15)
