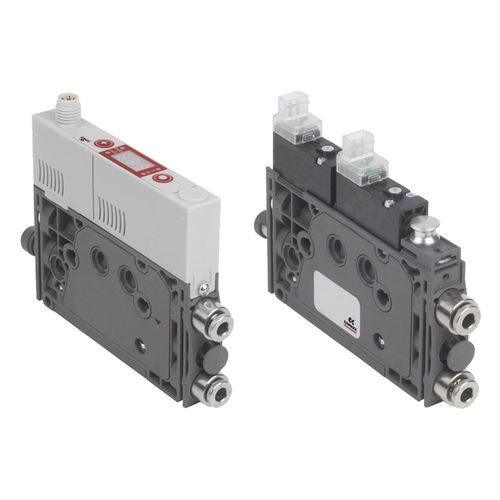

Lubricated Venturi ejector VEQ

single-stageglassprinted circuit

Ultra-compact vacuum generators with a high suction capacity with containted dimensions. Nozzle diameter: 0,5 - 0,7 - 1,0 mm. Series VEQ compact ejectors are available in three versions: with control solenoid valves without air saving circuit (B), with digital inputs and air saving circuit (S) and with I/O-Link communication and air saving circuit (I). Extreme compactness and reduced weight make this series the perfect solution for handling smooth, non porous items in dynamic pick & place applications with short cycle times. These devices are frequently used in automated systems like robots and gantry systems, for the handling of glass panes, plastic items, displays, printed circuit boards and electronic components or batteries. Description - Basic ejector Materials - Technopolymer body Brass nozzle Vacuum max. - 87 % Nozzle - 0,5 mm (5) - 0,7 mm (7) - 1,0 mm (10)
