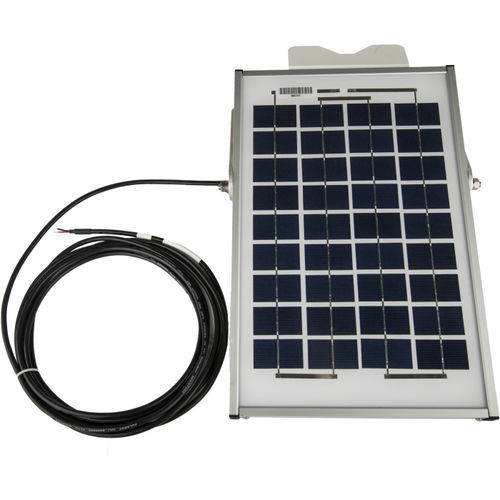

Battery charger solar panel SP10

monocrystalline silicon

The SP10 is a 10-W photovoltaic power sources capable of recharging batteries. Its 6.1 m (20 ft) cable has stripped and tinned leads that connect to the PS150, PS200, CH150, CH200, or battery base of the CRVW3, CR3000, CR5000, CR7, CR9000X, or CR6. The SP10 has a sufficient charging source for many of our system configurations in tropical to temperate latitudes. It allows unattended operation of systems in remote locations, far from AC electrical sources. Benefits and Features - Supplies electrical power in locations where ac power is unreliable, expensive, or not available - Recharges the sealed rechargeable battery of a PS150, PS200, BP12 (requires CH150 or CH200), BP24 (requires CH150 or CH200), CRVW3, CR3000, or CR5000 The SP10 includes mounting hardware consisting of one pn 17492 U-bolt and matching nuts. The U-bolt has a 5.398 cm (2.125 in.) space between the U-bolt legs. This hardware allows the solar panel to be mounted to a 0.75 in. to 1.5 in. IPS pipe [25.4 to 50.8 cm (1 to 2 in.) OD]. A 788 connector must be soldered onto the solar panel leads to use the SP10 with a 21XL rechargeable base.
