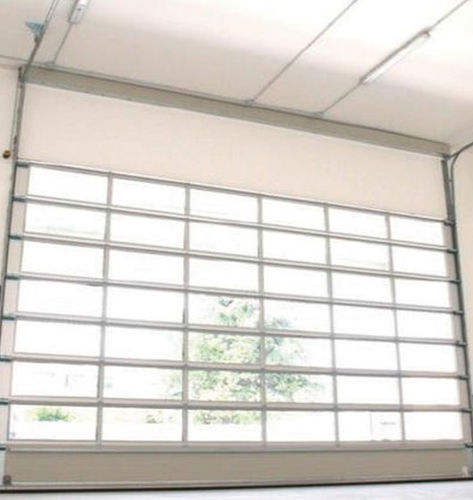

Sectional door FIDELITY®
metalsafetyautomatic

sectional door
sectional door
sectional door
sectional door
sectional door
sectional door
sectional door
sectional door
sectional door
sectional door
Add to favorites
Compare this product


Characteristics

Type
sectional
Material
metal
Other characteristics
safety, automatic, insulated, wind-proof
Applications
industrial, exterior
Width

8,000 mm (315 in)

Height

6,500 mm (256 in)

Description

Insulated sectional doors with Fidelity® hydraulic lifting system, maintenance free. CAMPISADOOR thickness 40 mm CAMPISACOOL thickness 80 mm Hydraulic doors up to 8 m wide and 6.5 m high, with a maximum door weight of 940 kg. The Fidelity® motorized door opens with a speed of about 20 cm / and closes by gravity, through an hydraulic pressure release system. Opening and closing can be automatic; in which case installation of safety systems is required. The performance of the Fidelity® door, in terms of precision and durability without maintenance, are truly exceptional: over 70,000 installations in over 40 countries are proof of this. The Fidelity® sectional door is operated by a maintenance-free hydraulic mechanism that requires just one annual inspection, as requested by law. This mechanism controls the door balance, allows it to always reach the fully open position, thus avoiding the risk of breaking the lower panel due to possible collision with the lifting trolleys. SERIES CONFIGURATION ELEMENTS OF THE DOOR The Fidelity® door consists of a curtain, vertical sliding guides, hydraulic motorization and 400 V three-phase electro-hydraulic console. THE PANELS are made by insulated sandwich panes with pre-galvanized and pre-painted sheets on both sides and internal ecological polyurethane foam, CFC-free. The panels are hinged together and, can turn horizontally under the ceiling if requested. THE MANTLE can be equipped with one or more portholes placed at man’s height in order to control the maneuvers outside. The lower panel is equipped with a floor seal, while the upper panel is fitted with a seal pressing against the wall.

VIDEO

*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
