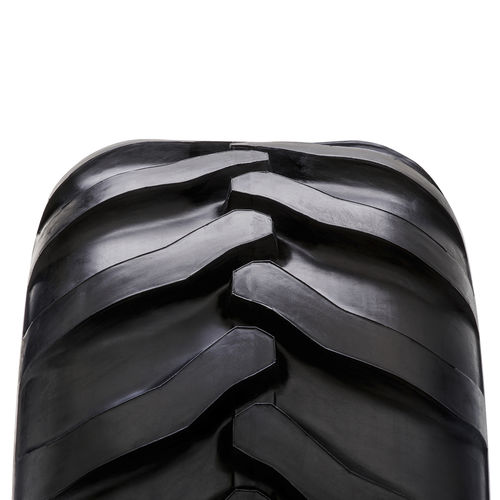

Construction equipment tire DMP 532

for rigid dumpers22.5"bias

Product summary
Bias mini-dumper tire delivering off-road traction and reduced vibration for improved site-to-site comfort.

Overview
A versatile bias construction tire designed for mini-dumpers. Provides strong off-road traction while mitigating vibration transmission to improve operator comfort during transfers between worksites. Representative size shown: 500/60-22.5.

Status
Discontinued. As of 1 January 2026 this product has been phased out and is no longer available.

Key attributes

• Brand: Camso
• Model: DMP 532
• Construction: Bias
• Primary use: Mini-dumper / construction off-road applications
• Representative size: 500/60-22.5
• PR: 16
• Recommended rim: AG16.00 (alternatives: 15.00; 16.00; 17.00)
• Traction: 90%
• Tire life: 60%
• Puncture resistance: 60%

Technical table - specifications for all product size(s)
Representative entries for size 500/60-22.5: Service entries include WITHOUT HLV / FREE ROLLING and WITHOUT HLV / DRIVE depending on mounting. Example specification rows (metric): 500/60-22.5 | PR 16 | Rim recommended AG16.00 (alternatives 15.00; 16.00; 17.00) | Rim diameter 22.50 | Overall diameter 1165.9 mm | Overall width 497.8 mm | Original tread depth 34.9 mm | Inflation pressure 3.2 bar | Service: WITHOUT HLV — FREE ROLLING | Load index 163 | Speed symbol A8 | TRA Code I-3 | Max loads (kg) at speeds: 8044.5 / 6824.3 / 6484.1 / 6143.9 / 5799.2 / 5459.0 / 5121.1 / 4876.1 / 4390.8. Alternate row for DRIVE service: same size | PR 16 | Service: WITHOUT HLV — DRIVE | Load index 151 | Max loads (kg) at speeds: 8110.2 / 4830.8 / 4590.4 / 4345.4 / 4105.0 / 3864.6 / 3624.2 / 3449.6 / 3104.8.

Notes

• Table entries include both FREE ROLLING and DRIVE service designations for the listed size; consult mounting and service assignment before selection.
• All dimensional and load values are metric as published on the product page.

Characteristics / technical specifications

• Brand: Camso
• Commercial designation (model): DMP 532
• Product family / type: Bias mini-dumper tire (construction)
• Status: Discontinued — phased out as of 01/01/2026
• Available size shown: 500/60-22.5
• PR: 16
• Recommended rim: AG16.00 (alternatives: 15.00; 16.00; 17.00)
• Rim diameter example: 22.50
• Overall diameter (metric): 1165.9 mm
• Overall width (metric): 497.8 mm
• Original tread depth: 34.9 mm
• Inflation pressure example: 3.2 bar
• Service / Application: WITHOUT HLV — FREE ROLLING and DRIVE entries present
• Load index examples: 163 (FREE ROLLING), 151 (DRIVE)
• Speed symbol: A8
• TRA Code: I-3
• Performance indicators: Traction 90%; Tire life 60%; Puncture resistance 60%
