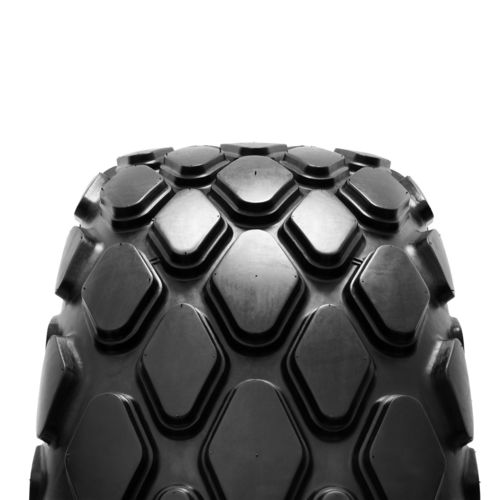

Construction equipment tire CMP 533

for compactors26"bias

Product overview
Bias construction compaction tire designed for heavy-duty paving and compaction applications. Provides enhanced side‑impact resistance while minimizing ground pressure and surface damage. Classified as Bias.

Key features

• Heavy-duty compaction performance and durability
• Enhanced side-impact resistance
• Minimizes ground pressure and surface damage in paving applications
• Bias construction
• Progress indicators: Tire life ~70%, Puncture resistance ~70%, Traction ~50%

Specifications table
Tire size — 23.1-26
PR — 12
Recommended Rim Size — DW20B
Alternative Rim Size — DW20A; TW20B
Rim Diameter — 26.00
Overall Diameter — 1590 mm
Overall Width — 604.5 mm
Original Tread Depth — 27 mm
Load Index — 162
Speed Symbol — A8
TRA Code — R-3
Inflation Pressure — 1.9 bar
Maximum Tire Load (10 km/h) — 5939.8 kg
Maximum Tire Load (15 km/h) — 5370.5 kg

Status
Discontinued — phased out since July 9, 2025; no longer available.

Additional information

• Brand: Camso
• Intended application: compaction / paving

Technical specifications

• Construction type: Bias
• Tire size: 23.1-26
• PLY/PR: 12
• Recommended rim: DW20B
• Alternative rim(s): DW20A; TW20B
• Rim diameter: 26.00
• Overall diameter: 1590 mm
• Overall width: 604.5 mm
• Original tread depth: 27 mm
• Load index: 162
• Speed symbol: A8
• TRA code: R-3
• Inflation pressure (example): 1.9 bar
• Maximum tire load @ 10 km/h: 5939.8 kg
• Maximum tire load @ 15 km/h: 5370.5 kg
