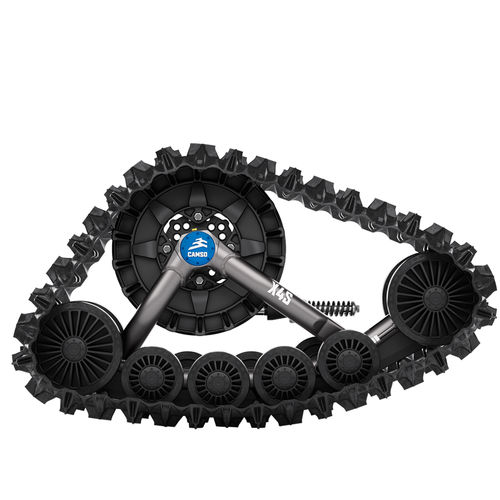

Rubber track CAMSO X4S

steelrubber

Overview
Built for work and recreational use, the CAMSO X4S track system converts ATVs and mid-size UTVs into high-traction, low-speed torque machines. Flex-Track front geometry and a carbon steel frame improve steering response, flotation and stability on steep slopes, deep snow and mixed terrain.

Key benefits

• All-season operability across snow, mud and loose surfaces.
• Improved climb and lateral stability for sidehilling and hill climbs.
• Increased low-speed torque and pulling power compared with tires.
• Wide vehicle compatibility: fits 300+ ATV and 80+ UTV models with adapted mount kits.
• Ready-to-install solution including an adapted mount kit specific to the vehicle application.

Features & technology

• Flex-Track front design with slight inward curve to enhance steering and handling.
• Solid carbon steel frame geometry for improved front-end response.
• Large contact patch and lug heights: 1.125 in front / 1.25 in rear to maximize traction and limit rebound when sidehilling.
• Double-bearing hubs and oil-bath housings for durability and reduced maintenance.
• Bolted-on double-bearing mid-roller and idler wheels for simplified serviceability.
• Cone dampers on tandem and rear tracks to reduce vibration and improve ride comfort.
• Adapted sprocket sizing to optimize gear ratio and efficiently transfer torque to the ground.

What’s included
Four track systems (2 front, 2 rear) and an adapted mount kit specific to the vehicle application. Mount kit contains the parts needed to install the tracks on a compatible vehicle.

Performance notes

• Expect a reduction in top speed, commonly around 30% on average, in exchange for greater low-speed torque and pulling power.
• Ground clearance is increased compared with tires (average increase shown in specs).
• Fuel consumption and odometer readings will be affected; plan accordingly for field operations.

Maintenance & support

• Follow a regular maintenance schedule; inspect more frequently under abrasive or heavy-use conditions.
• Dedicated technical support and limited warranty available from CAMSO dealers and service centers.

Technical specifications

• Drive type: Internal drive
• Sprocket: 15 to 18 teeth
• Frame: Carbon steel
• Anti-rotation: Redesigned mild steel anti-rotation single rate spring and progressive damper; quick-connect steering limiter design
• Weight: Front: 72.6 lb; Rear: 79.4 lb; Mount kit: approx. 6.25 lb
• Hub & bearings: Cast steel multi-bolt (4) pattern
• Wheels & bearings: 5.3 & 7.9 in double-bearing wheels; standard and replaceable sealed bearings; elastomer outer band; bladder-type wheel cap
• Rubber track design: Front: Flex; Rear: Flat
• Track length: Front: 93.4 in; Rear: 98.5 in
• Track lug height: Front: 1.125 in; Rear: 1.25 in
• Track width: Front: 11.5 in; Rear: 12.5 in
• Typical ground coverage (approx.): approx. 2000 sq. in.
• Average ground clearance increase: Increased by 3 in (vs tires)
