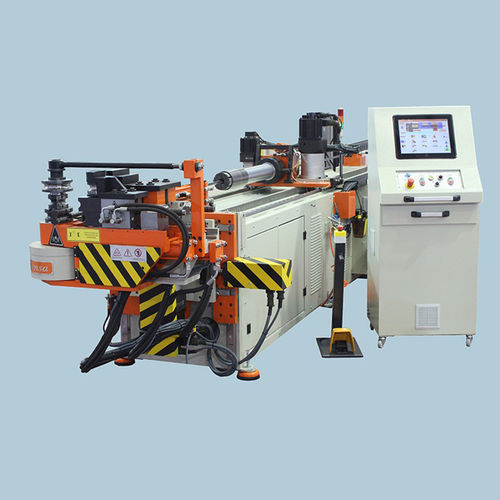

hydraulic bending machine / for tubes / CNC / automatic
CNC38 R3

{{requestButtons}}

Characteristics

  • Operation:

    hydraulic

  • Product handled:

    for tubes

  • Other characteristics:

    CNC, automatic, mandrel, rolling

  • Tube diameter:

    38 mm

Description

■CNC tube bending machine
■PLC control
■Maximum bending capacity 38X2 mm diameter.
■To make rolling (to bend a wide range of bending with roller)
■To work three different radius at the same time
■Bending axis by servo motor
■Feeding axis by servo motor
■Rotation axis by servo motor
■Mold axis by servo motor
■Hydraulic clamp
■Hydraulic pressure die
■Hydraulic mandrel
■Hydraulic support
■Hydraulic clow collet
■Hydraulic up-down movement
■Timed automatic lubrication for working components
■Automatic mandrel lubrication
■Max. 190 bending angle
■Bending degree with encoder
■Automatically activated hydraulic oil cooler and double fans
■15" PC touch screen
■3D simulation
■Manual, semi-automatic or automatic operation on the screen
