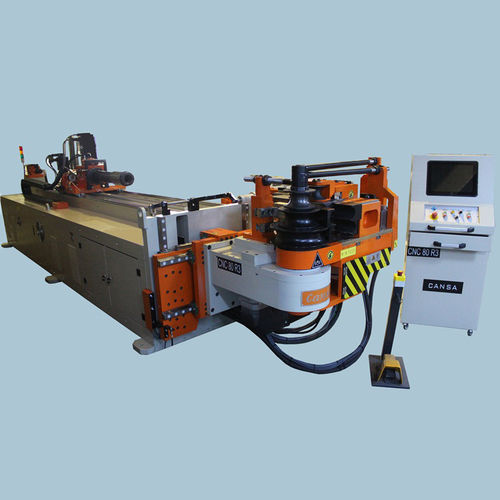

hydraulic bending machine / for tubes / CNC / automatic
CNC80 R3

{{requestButtons}}

Characteristics

  • Operation:

    hydraulic

  • Product handled:

    for tubes

  • Other characteristics:

    CNC, automatic, mandrel, PLC-controlled, rolling

  • Tube diameter:

    80 mm

Description

CNC tube bending machine
PLC control
Maximum bending capacity 80X3 mm diameter
To make rolling (to bend a wide range of bending with roller)
To work three different radius at the same time
Bending axis by servo motor
Feeding axis by servo motor
Rotation axis by servo motor
Mold axis by servo motor
Hydraulic clamp
Hydraulic mandrel
Hydraulic pressure die
Hydraulic support
Hydraulic clow collet
Hydraulic up-down movement
Max. 190 bending angle
Bending degree with encoder
Automatically activated hydraulic oil cooler and double fans
Timed automatic lubrication for working components
Automatic mandrel lubrication
15" PC touch screen
3D simulation
Manual, semi-automatic or automatic operation on the screen
To see daily / total amount of production on the screen
