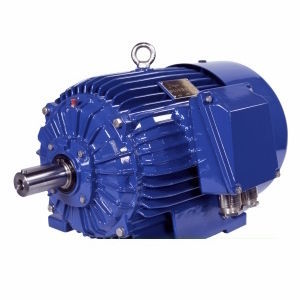

IE1 motor Sh56-2Ainductionthree-phase400 V
Add to favorites
Compare this product
Characteristics
- Type
- induction, three-phase
- Voltage
- 400 V, 380 V, 460 V, 220 V, 265 V
- Configuration
- aluminium, squirrel-cage rotor
- Protection class
- IP55, IP54
- Efficiency classes
- IE1
- Number of poles
- 2-pole
- Cooling mechanism
- IC411
- Applications
- industrial
- Other characteristics
- IEC, standard
- Power
0.09 kW
(0.12 hp)- Intensity
0.35 A, 0.6 A
- Torque
0.3 Nm
(0.221269 ft.lb)- Rotational speed
2,820 rpm, 3,000 rpm
(17,718.5826 rad.min-1, 18,849.5559 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
Breakdown torque ratio [ 2.7
Winding connection ∆/Y
Starting current ratio [ 3.4
Frequency [Hz] 50
Efficiency at 2/4 of full load [ 47.5%
Rated output [HP] 0.12
Efficiency at 3/4 of full load [ 55.9%
Service factor [ 1.0
Efficiency at rated (full) load [ 62.0%
Duty S1
Power factor at 2/4 of full load [ 0.42
Power factor at 3/4 of full load [ 0.52
Power factor at rated (full) load [ 0.63
Starting torque ratio [ 2.5
Sound pressure level [dB] 50
Frame size 56
Sound power level [dB] 57
Terminal box position top
Starting method DOL or Y/∆
Possibility of terminal box rotation yes
Insulation class F
Bearing on D-side 62012Z
Frequency converter supply yes
Bearing on ND-side 62012Z
