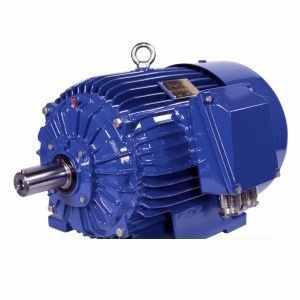

IE1 motor Sh63-8Ainductionthree-phase400 V
Add to favorites
Compare this product
Characteristics
- Type
- induction, three-phase
- Voltage
- 400 V, 380 V, 460 V, 220 V, 265 V
- Configuration
- aluminium, squirrel-cage rotor
- Protection class
- IP55, IP54
- Efficiency classes
- IE1
- Number of poles
- 8-pole
- Cooling mechanism
- IC411
- Applications
- industrial
- Other characteristics
- IEC, standard
- Power
40 W
(0.05 hp)- Intensity
0.5 A, 0.9 A
- Torque
0.57 Nm
(0.42041 ft.lb)- Rotational speed
670 rpm, 750 rpm
(4,209.7342 rad.min-1, 4,712.389 rad.min-1)- Operating temperature
40 °C
(104 °F)
Description
Breakdown torque ratio [ 1.7
Winding connection ∆/Y
Starting current ratio [ 1.3
Frequency [Hz] 50
Efficiency at 2/4 of full load [ 11.3%
Rated output [HP] 0.06
Efficiency at 3/4 of full load [ 16.2%
Service factor [ 1.0
Efficiency at rated (full) load [ 30.0%
Duty S1
Power factor at 2/4 of full load [ 0.49
Power factor at 3/4 of full load [ 0.53
Power factor at rated (full) load [ 0.56
Starting torque ratio [ 1.8
Sound pressure level [dB] 50
Frame size 63
Sound power level [dB] 57
Terminal box position top
Starting method DOL or Y/∆
Possibility of terminal box rotation yes
Insulation class F
Bearing on D-side 62022Z
Frequency converter supply yes
Bearing on ND-side 62022Z
