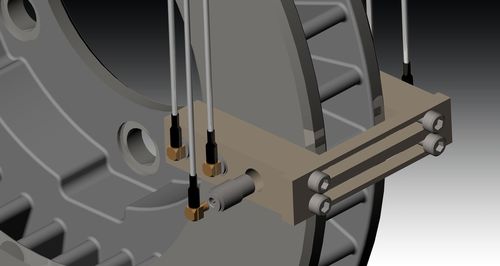

Power cable EC series

extensioncoaxialBNC

An example of a typical standard coaxial extension cable is a 5-foot extension cable with female BNC to male BNC connectors (Model EC-D-L2-5) Many coaxial extension cables are available depending upon connector types. Please contact us for additional information and part numbers. Cable Temperature Range for “A” & ”E” Probes, -65°F to 446°F (-54°C to 230°C) Type L2 OD .093” (2.36) Teflon ~ 30 pF/ft (90/m) Type L3 OD .063” (1.60) Teflon ~ 26 pF/ft (78/m) Type I2 OD .125” (3.18) Teflon ~ 14 pF/ft (42/m) Cable Temperature Range for “V” Probes, -98°F to 1600°F (-72°C to 870°C) Type T OD .063” (1.60) Semi-rigid Inconel 600 powder filled ~ 60 pF/ft (180/m) Type N OD .142” (3.61) Flexible Inconel Braided ~ 20 pF/ft (60/m) Type ND OD .165” (4.19) Low Impedance Shield Version of N ~ 35 pF/ft (105/m) Coaxial Connectors Standard coaxial connectors for Capacitec sensors are BNC connectors. Microdot and MCX connectors are optional. Additional custom connectors may be available upon request. When measurement is required inside sealed enclosures such as vacuum chambers, Capacitec can assist in locating special isolated coaxial “pass through” connectors. Standard multi-coax connectors are available for customers using multiple channels of electronics and looking to simplify their connections. Please contact Capacitec technical experts for additional information on available connector options.
