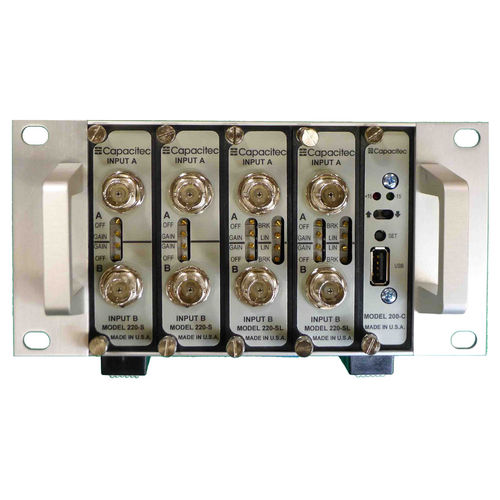

Signal amplifier 200 series

signal amplifier
signal amplifier
signal amplifier
signal amplifier
Add to favorites
Compare this product


signal, power, capacitance
Secondary function
measuring, conditioning, acquisition
Other characteristics
electronic, DC, rack-mount, compact, modular

Max.: 240 V

Min.: 105 V


The Capteura® 200 Series Modular non-contact capacitive displacement instrumentation packages are the next generation to the 4000 series. Introduced in 2012, the new Capteura® 200 Series offers Capacitec’s highest stability and lowest noise solution for displacement measurements when used in conjunction with any of Capacitec line of non-contact displacement, gap and hole sensors. Lab and field testing has confirmed that the Capteura® 200 series has the industry tested best performance for: Small capacitive sensor size vs. large displacement and gap measurement range plus long cable lengths with minimal calibration changes Capteura® series of true modular, compact amplifiers and electronic racks offer a cost competitive middle ground between old large electronic racks and new limited “mock modular” racks Electrostatic Discharge Protection: IEC 61000-4-2 level 4 for contact (8kV) and air (16kV) discharge Internal AC and DC (optional) power supplies vs. annoying external power bricks Capteura® 200 Series provides and offers the latest state-of-the-art electronics and offer significant added value to users such as: The modular amplifier cards are designed to operate with every probe diameter configuration and several sensitivity ranges by simple recalibration. For applications that require use of multiple sensors, the dual 220 amplifier cards are mounted in the new 208-ACU and 216-ACU 8 or 16 channel compact racks. These can be optionally connected to Capacitec Bargrafx™, a LabView® based data acquisition and display software, providing additional visualization, linearization and signal conditioning capabilities.
