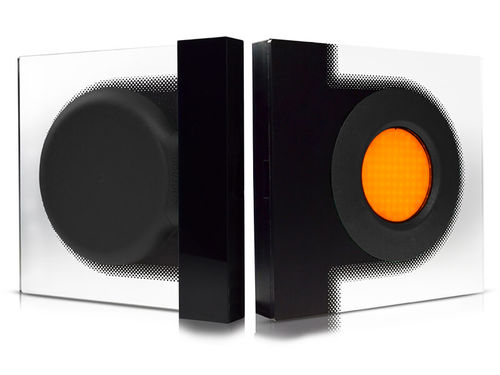

Steady beacon CSL6

strobeLED24 Vdc

Description The full area LED signal lamp from CAPTRON is illuminated with 96 bright LEDs in red and yellow. The CSL6 is designed for gluing to single and double-glazed glass. There is no need to make a hole in the glass for installation and the button can easily be clipped into the fastening flange. We can also provide corner and angle mountings for the flexible positioning of the CSL6 on the glass. We manufacture the housing in polycarbonate. The front is impact-resistant and can be cleaned using a pressure washer (classes of protection IK 08 and IP 68K). They require no maintenance and suffer no wear, making them ideal for permanent everyday use and for withstanding even the most adverse environmental conditions such as heat and cold as well as industrial influences such as dirt, dust and chemicals. LED technology means a service life of up to 100,000 hours can be achieved which corresponds to 11 years of continuous operation. Important properties •Large illuminated area 55 mm in diameter The electronics and lamps are cast to make them watertight •Extremely long service life of up top 10,000 hours Energy-efficient, maintenance-free, wear-free •100% waterproof and oil-resistant / vandalism-proof Degree of protection IP 69K, impact and scratch-resistant IK08 •Lighting 96 LEDs (red or yellow) •Installation Glued installation behind glass Pane or glass or acrylic glass panel
