Double-ended shear beam load cell DB series

beam typestrain gaugedigital

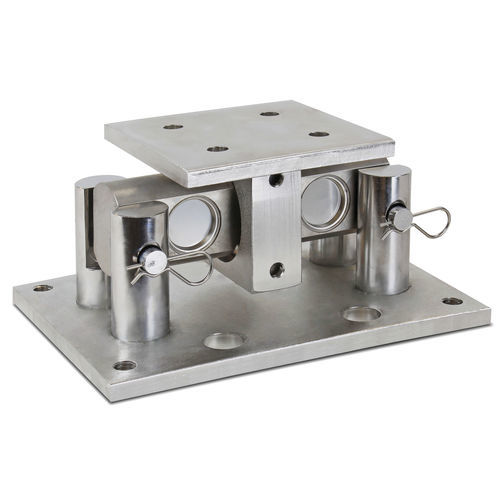

CenterPoint DB-SP Double-Ended Shear Beam Cardinal Scale’s DB-SP CenterPoint load cell heavy-capacity mounting kits utilize the time-tested and reliably-proven model DB double-ended stainless steel load cells that feature a center load design. The stands are available in either stainless steel or mild steel powder-painted industrial tan and they bolt directly to the floor and tank. The DB-SP’s environmentally-sealed load cells are NTEP, OIML, and VCAP certified for quality and accuracy. They provide superior performance in a wide range of process control and vessel weighing applications weighing tanks, bins, hoppers, silos, and mixers. Standard system capacities range from 60,000 lb (27,000 kg) up to 300,000 lb (136,000 kg). The bolt-in-place mounting assembly with articulating top plate makes them ideal for indoor or outdoor weighing applications. Available in three or four-legged mounting assemblies, the DB-SP CenterPoint load cell kits are perfect for mixing, blending, batching, inventory control, and general weighing. Combine them with one of Cardinal’s state-of-the-art 200 series weight indicators for a complete digital weighing system. The DB-SP stands are engineered for superior serviceability and easy load cell replacement by simply applying a jack under the stand, removing the cotter pins, and swapping out the load cell. The easy load cell removal minimizes maintenance costs. The kits are ideal for new installations or conversions. Each kit includes the mounting stands, stainless steel load cells, cables, and NEMA 4 junction box.
